Lifting Chain & FittingsConnecting linkAvailable
Connecting Link GR8 / GR10
WLL 1.12 - 32.8 t
Part No. GP-C8-004 / GP-C10-006· Green Pin / ABLE

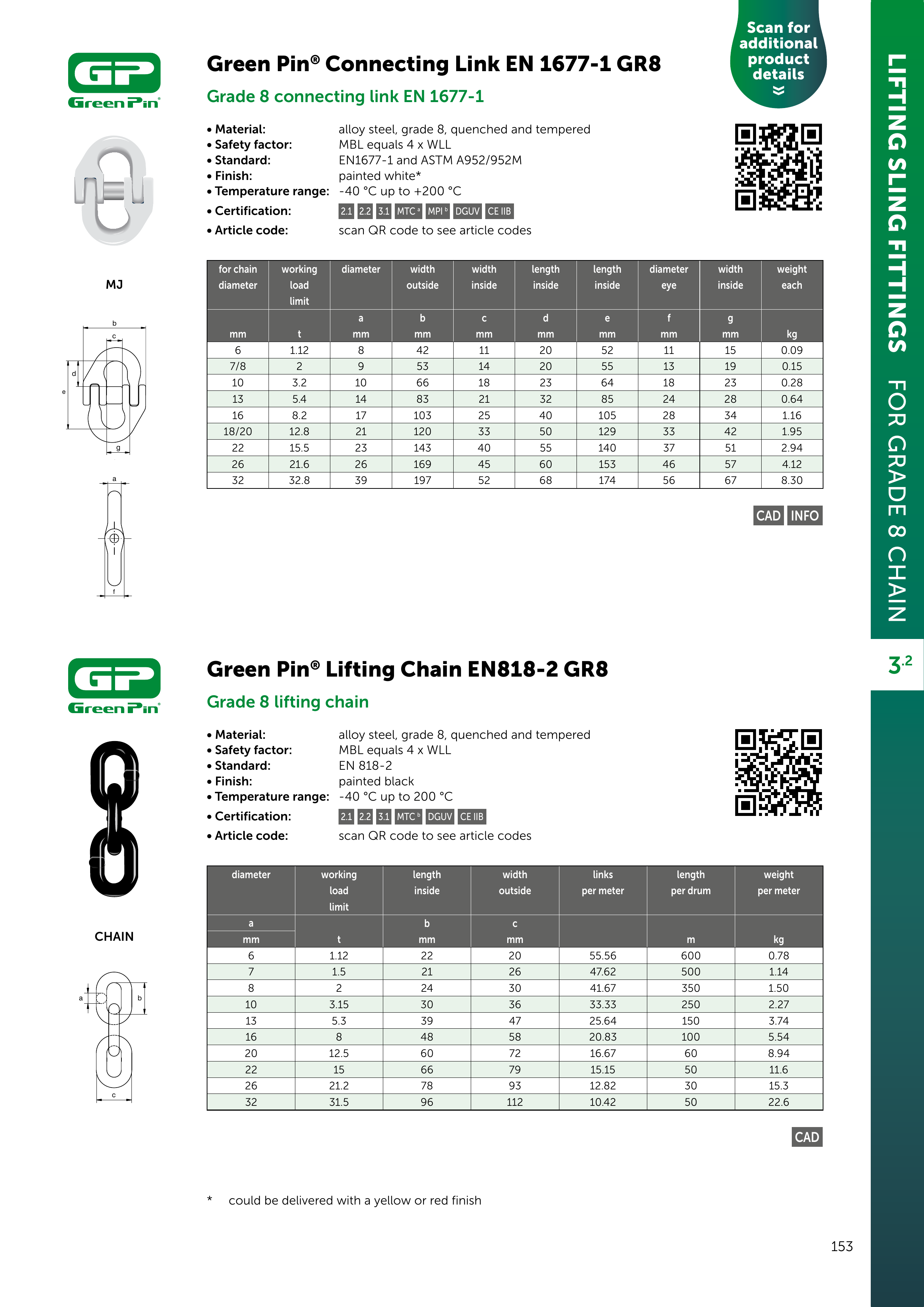

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Green Pin® connecting link to EN 1677-1, grade 8 — used to join chain, master links and fittings in lifting-sling assemblies. Forged in grade 8 alloy steel, quenched and tempered, with a minimum breaking load of 4× WLL. Painted white (yellow or red on request), rated −40°C to +200°C. Made to EN 1677-1 and ASTM A952/A952M. WLL 1.12–32.8 t.
Specifications
- Category
- Lifting Chain & Fittings
- Subcategory
- Connecting link
- WLL / Range
- WLL 1.12 - 32.8 t
- Type
- Connecting link (hammerlock)
- Material
- Alloy steel, grade 8, quenched & tempered
- Safety factor
- MBL = 4 × WLL
- Standard
- EN 1677-1 · ASTM A952/A952M
- Finish
- Painted white
- Temperature range
- −40°C to +200°C
- Certification
- 2.1 / 2.2 / 3.1 MTC · MPI · DGUV · CE IIB
- Part Number
- GP-C8-004 / GP-C10-006
- Brand
- Green Pin / ABLE
- Standards / Certifications
- EN 1677-1ASTM A952/A952MGrade 8CE IIB
