EE / JE Swivel / Bearing Swivel
WLL 0.4 - 35 t
Part No. G-7713 / G-7733 / AV· Green Pin / ABLE

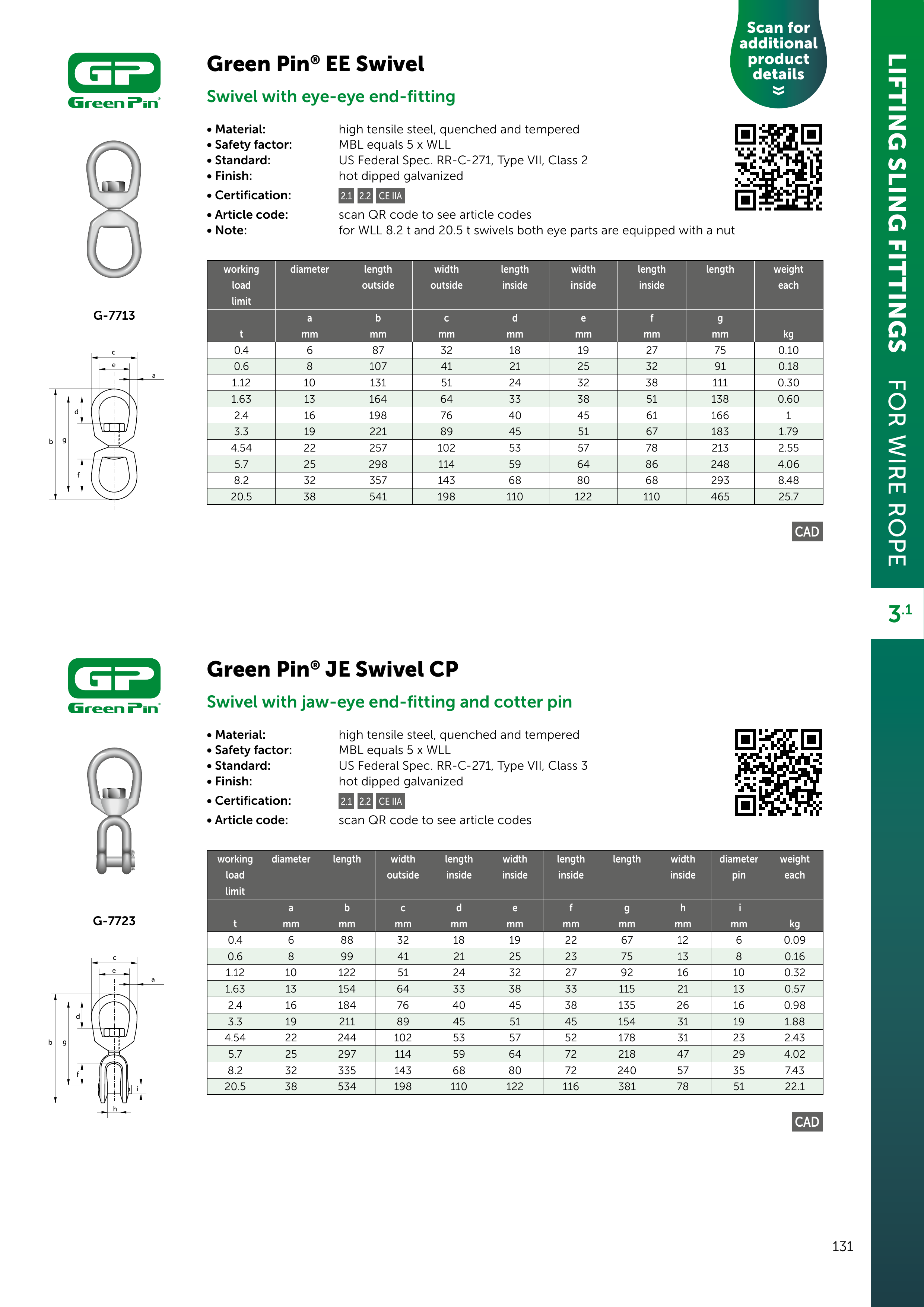

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Green Pin® swivels with eye-eye (EE) or jaw-eye (JE) end fittings, for connecting slings and lifting points while allowing rotation and preventing wire rope from unlaying. Forged in high-tensile steel, quenched and tempered, minimum breaking load 5× WLL, hot-dipped galvanized. Made to US Federal Spec. RR-C-271 Type VII (Class 2 for EE, Class 3 for JE); an AV bearing-swivel version permits rotation under load. WLL 0.4–35 t.
Specifications
- Category
- Fittings
- Subcategory
- Swivel
- WLL / Range
- WLL 0.4 - 35 t
- Type
- Swivel — eye-eye (EE), jaw-eye (JE), bearing (AV)
- Material
- High-tensile steel, quenched & tempered
- Safety factor
- MBL = 5 × WLL
- Standard
- US Fed. Spec. RR-C-271 Type VII
- Finish
- Hot-dipped galvanized
- Certification
- 2.1 / 2.2 · CE IIA
- Part Number
- G-7713 / G-7733 / AV
- Brand
- Green Pin / ABLE
- Standards / Certifications
- RR-C-271 Type VIIHot-dip galvanizedCE IIA
