Fiber Core Steel Wire Rope
Catalogue detail

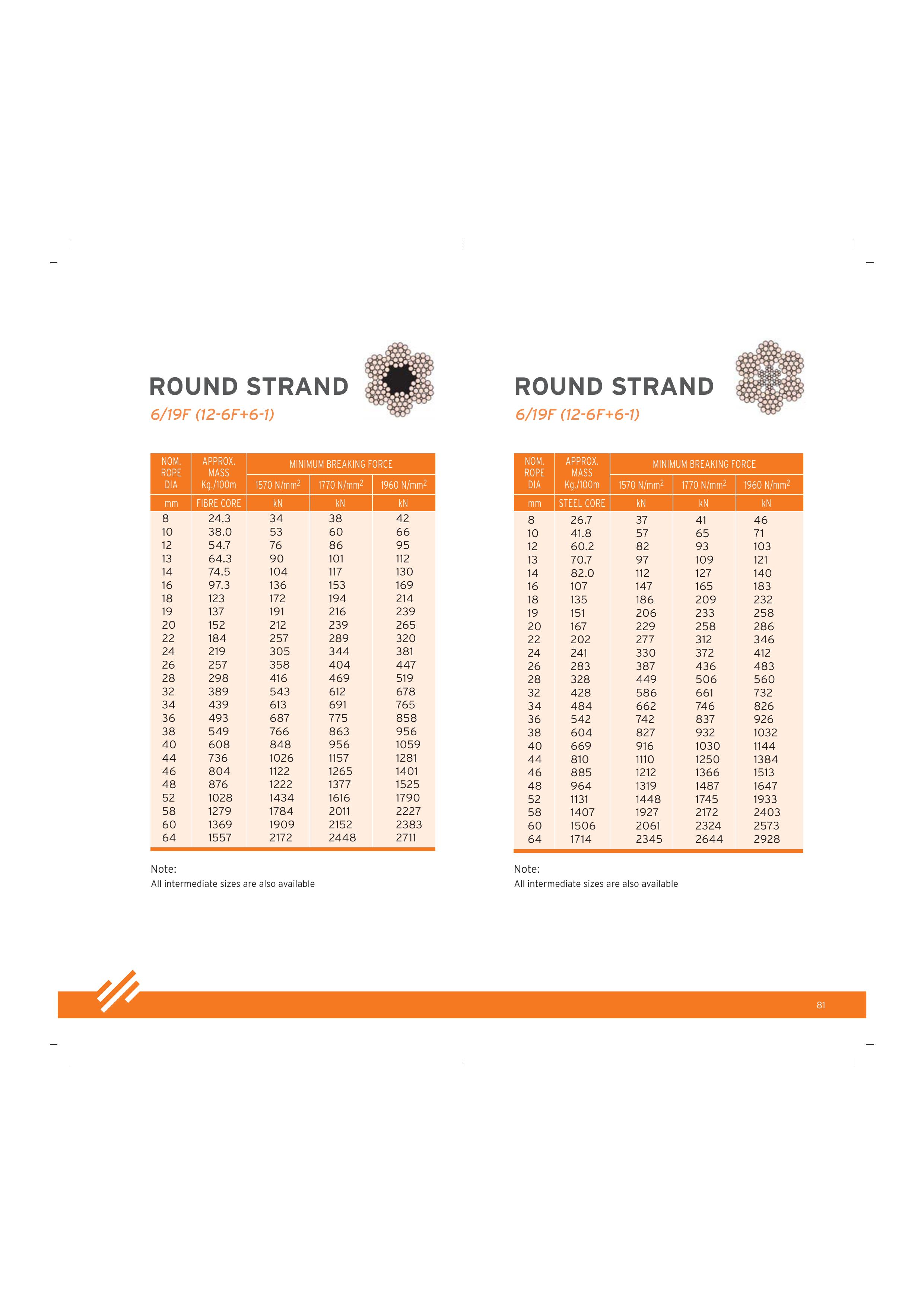

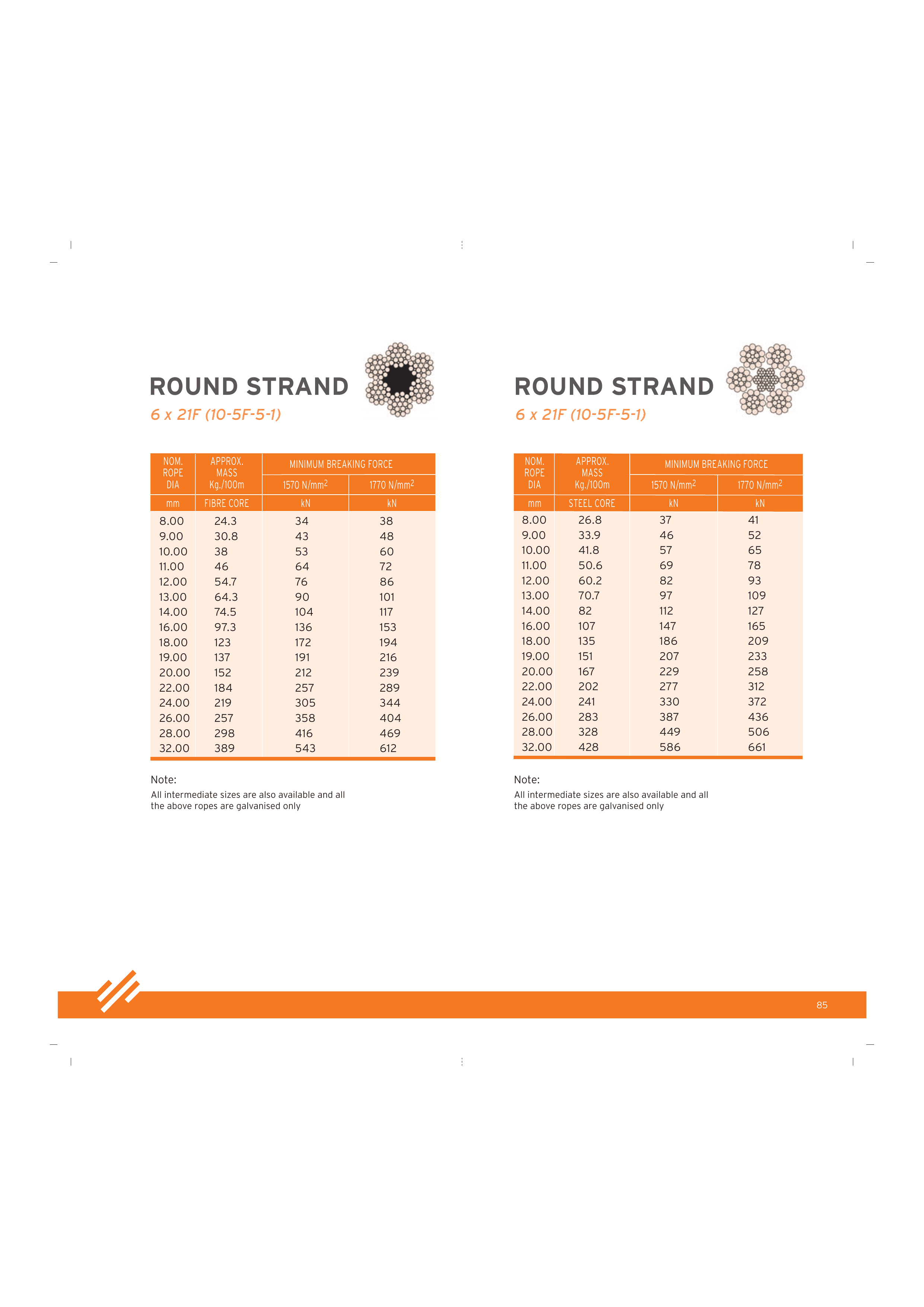

Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Round-strand steel wire rope with a fibre core (FC) — the flexible, general-purpose lifting, rigging and haulage rope. The fibre core cushions the six strands and holds lubricant, giving good flexibility and shock absorption for slinging, winching and general pulling. Available across the 6×19F (12-6F+6-1), 6×21F (10-5F-5-1) and 6×29F (14-7F+7-1) classes; an equivalent steel-core (IWRC) version is offered where higher strength or crush resistance is required. Tensile grades 1570 / 1770 / 1960 N/mm², galvanized or bright. Diameters Ø 8–64 mm, minimum breaking force up to 2711 kN. All intermediate sizes available on request and prior confirmation.
Specifications
- Category
- Steel Wire Rope
- Subcategory
- Fiber core (6x36 / 6x37 / 6x19 + FC)
- WLL / Range
- Ø 8 – 64 mm · MBF up to 2711 kN
- Type
- Round-strand rope, fibre core (FC)
- Constructions
- 6×19F (12-6F+6-1) · 6×21F (10-5F-5-1) · 6×29F (14-7F+7-1)
- Core
- Fibre core (FC) — steel core (IWRC) also available
- Tensile grade
- 1570 / 1770 / 1960 N/mm²
- Finish
- Galvanized or bright
- Rope diameter
- Ø 8 – 64 mm
- Approx. mass
- 24.3 – 1557 kg/100 m (6×19F)
- Min. breaking force
- 34 – 2711 kN (6×19F, up to 1960 N/mm²)
- Note
- All intermediate sizes available on request
- Standards / Certifications
- 6×19F / 6×21F / 6×29F1570 / 1770 / 1960 N/mm²
