ShackleBow Screw Pin ShackleAvailable

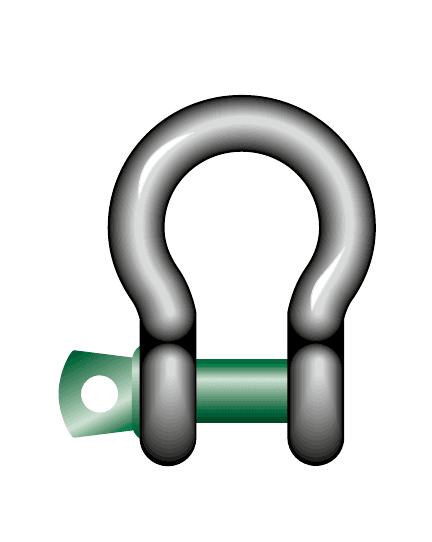

Green Pin Bow Shackle SC
WLL 0.33 - 55 t
Part No. G-4161· Green Pin

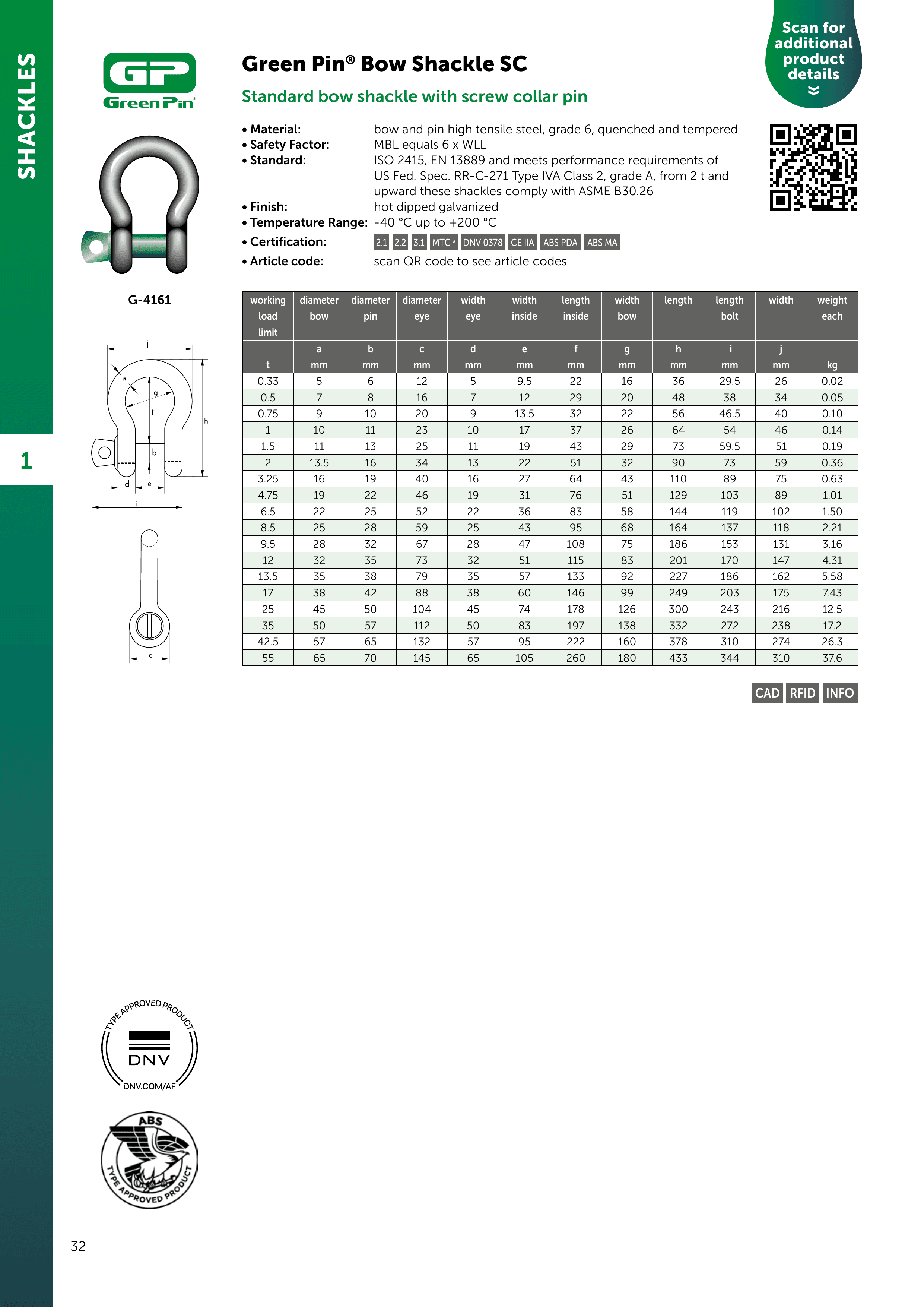

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Green Pin® bow (anchor) shackle with screw collar pin. The bow and pin are forged from high-tensile steel, grade 6, quenched and tempered, giving a minimum breaking load of 6× the working load limit. Hot-dipped galvanized finish for corrosion resistance, rated for −40°C to +200°C. Manufactured to ISO 2415 and EN 13889 and meeting US Fed. Spec. RR-C-271 Type IVA Class 2; from 2 t upward it complies with ASME B30.26. Working load limits 0.33–55 t, available with full DNV, ABS and 3.1 certification.
Specifications
- Category
- Shackle
- Subcategory
- Bow Screw Pin Shackle
- WLL / Range
- WLL 0.33 - 55 t
- Type
- Bow shackle · screw collar pin
- Material
- Bow & pin — high-tensile steel, grade 6, quenched & tempered
- Safety factor
- MBL = 6 × WLL
- Finish
- Hot-dipped galvanized
- Temperature range
- −40°C to +200°C
- Certification
- 2.1 / 2.2 / 3.1 MTC · DNV 0378 · ABS PDA / MA · CE IIA
- Part Number
- G-4161
- Brand
- Green Pin
- Standards / Certifications
- ISO 2415EN 13889ASME B30.26DNVABSCE
