ShackleDee Shackle with Safety Bolt and Fixed NutAvailable
Green Pin Dee Shackle FN
WLL 2 - 85 t
Part No. G-4133· Green Pin

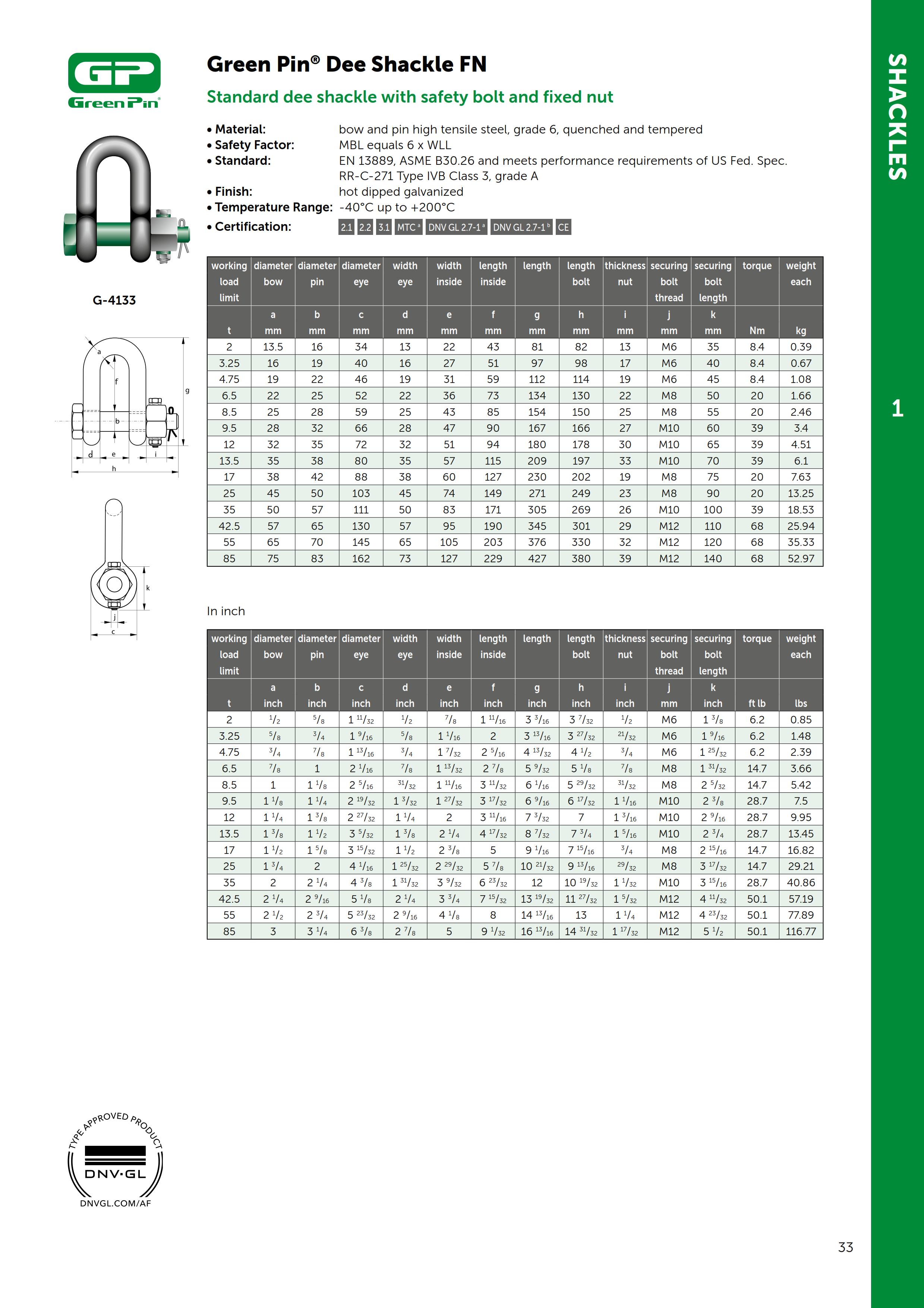

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
The Green Pin® Dee Shackle FN is a standard dee shackle with a safety bolt and fixed nut, featuring a bow and pin made of grade 6 high-tensile steel that is quenched and tempered. It has a safety factor where MBL equals 6 x WLL and complies with EN 13889 and ASME B30.26 standards, while also meeting the performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 3, grade A. The shackle is hot-dip galvanized, operates within a temperature range of -40°C up to +200°C, and is certified with 2.1, 2.2, 3.1, MTC, DNV GL 2.7-1, and CE.
Specifications
- Category
- Shackle
- Subcategory
- Dee Shackle with Safety Bolt and Fixed Nut
- WLL / Range
- WLL 2 - 85 t
- Type
- Dee shackle · safety bolt and fixed nut
- Material
- Bow & pin high tensile steel, grade 6, quenched & tempered
- Safety Factor
- MBL= 6 x WLL
- Finish
- Hot dipped galvanized
- Temperature Range
- -40°C up to +200°C
- Certification
- 2.1 / 2.2 / 3.1 / MTC / DNV / GL 2.7-1 / DNV GL 2.7-1 / CE
- Part Number
- G-4133
- Brand
- Green Pin
- Standards / Certifications
- EN 13889US Fed. Spec. RR-C-271 Type IVA Class 3, grade AASME B30.26MTCDNV GL 2.7-1CE
