ShackleGreen Pin Heavy Duty Bow Shackle FNAvailable
Green Pin Heavy Duty Bow Shackle FN
WLL 120-150 t
Part No. P-6016· Green Pin

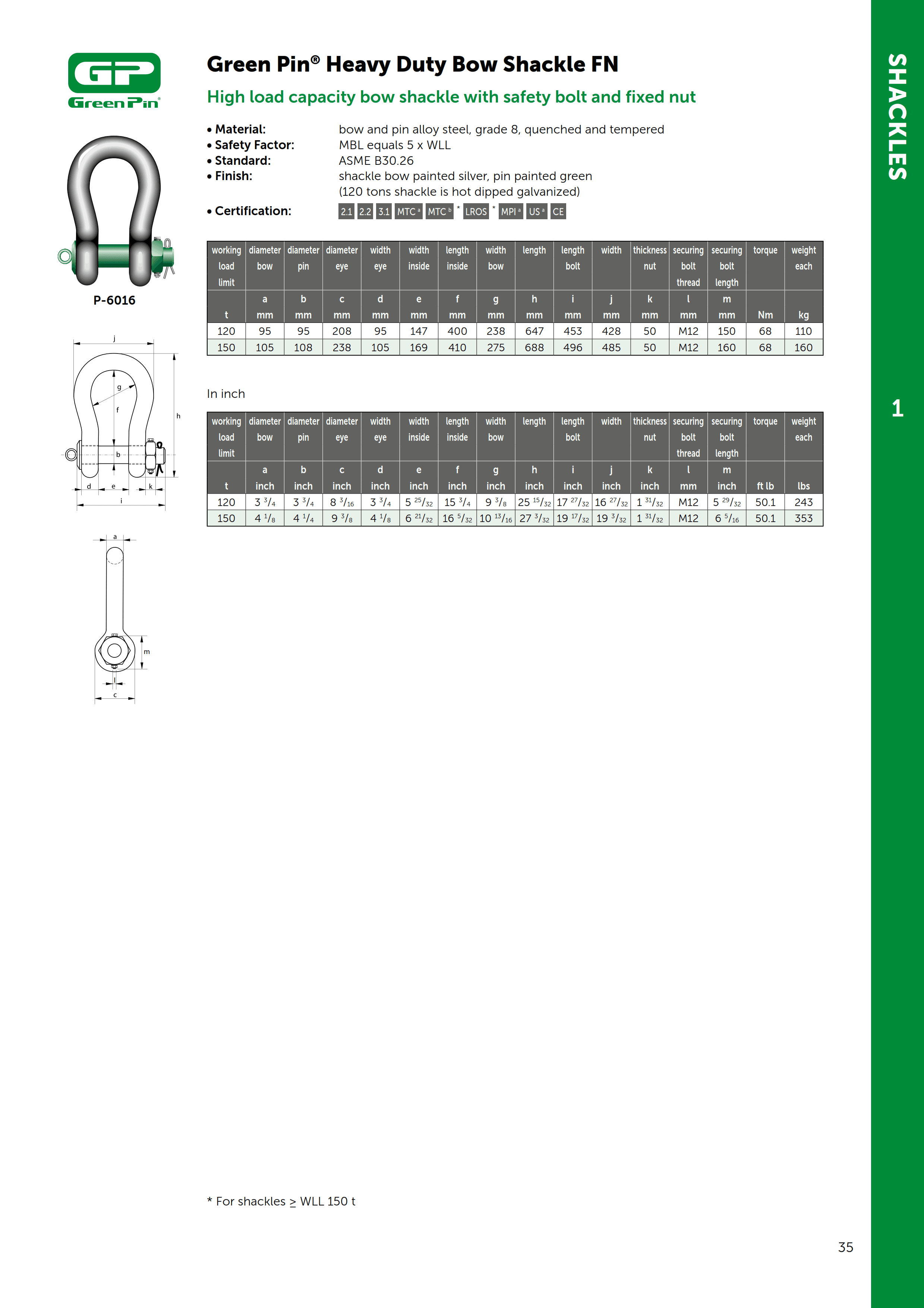

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Green Pin® Heavy Duty Bow Shackle FN is a high-strength bow shackle made from Grade 8 alloy steel with a safety bolt and fixed nut, offering a 5:1 safety factor, ASME B30.26 compliance, and reliable performance for heavy lifting and rigging applications.
Specifications
- Category
- Shackle
- Subcategory
- Green Pin Heavy Duty Bow Shackle FN
- WLL / Range
- WLL 120-150 t
- Type
- High load capacity bow shackle with safety bolt and fixed nut
- Material
- Bow and pin alloy steel, grade 8, quenched and tempered
- Safety Factor
- MBL equals 5 x WLL
- Finish
- Shackle bow painted silver, pin painted green(120 tons shackle is hot dipped galvanized)
- Certification
- EN 12195-3 / EN 13889 / EN 10204 3.1 / MTC / MTCb / LROS / MPI / US / CE
- Part Number
- P-6016
- Brand
- Green Pin
- Standards / Certifications
- ASME B30.26EN 13889EN 10204 3.1Mill Test Certificate (MTC)Mill Test Certificate Type B (MTCb)Lloyd's Register (LROS) ApprovalMagnetic Particle Inspection (MPI)US CertificationCE Marking
