Green Pin Master Link (EN 1677-4 GR8)
WLL 1.6 - 125 t
Part No. GP-WR-001· Green Pin

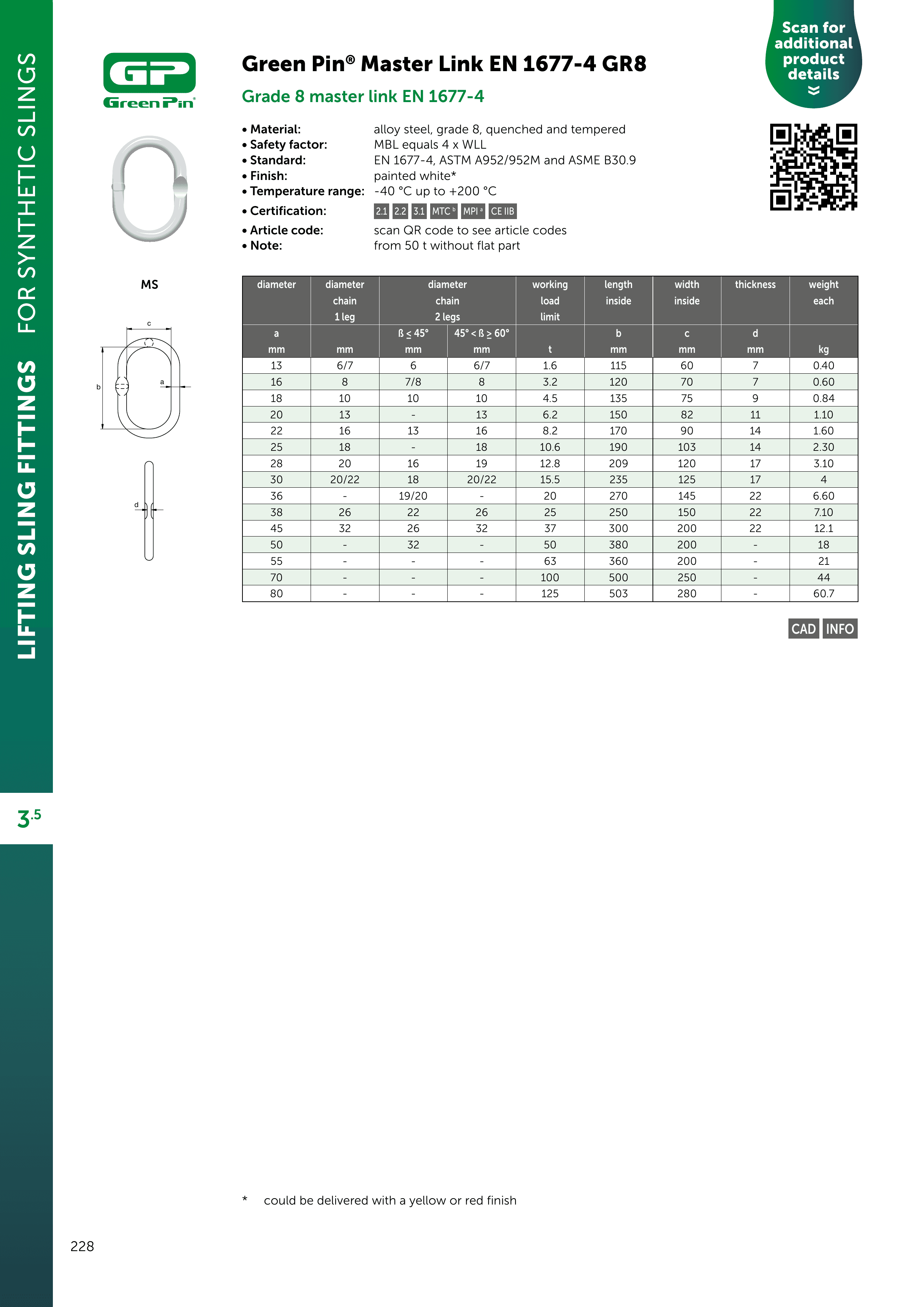

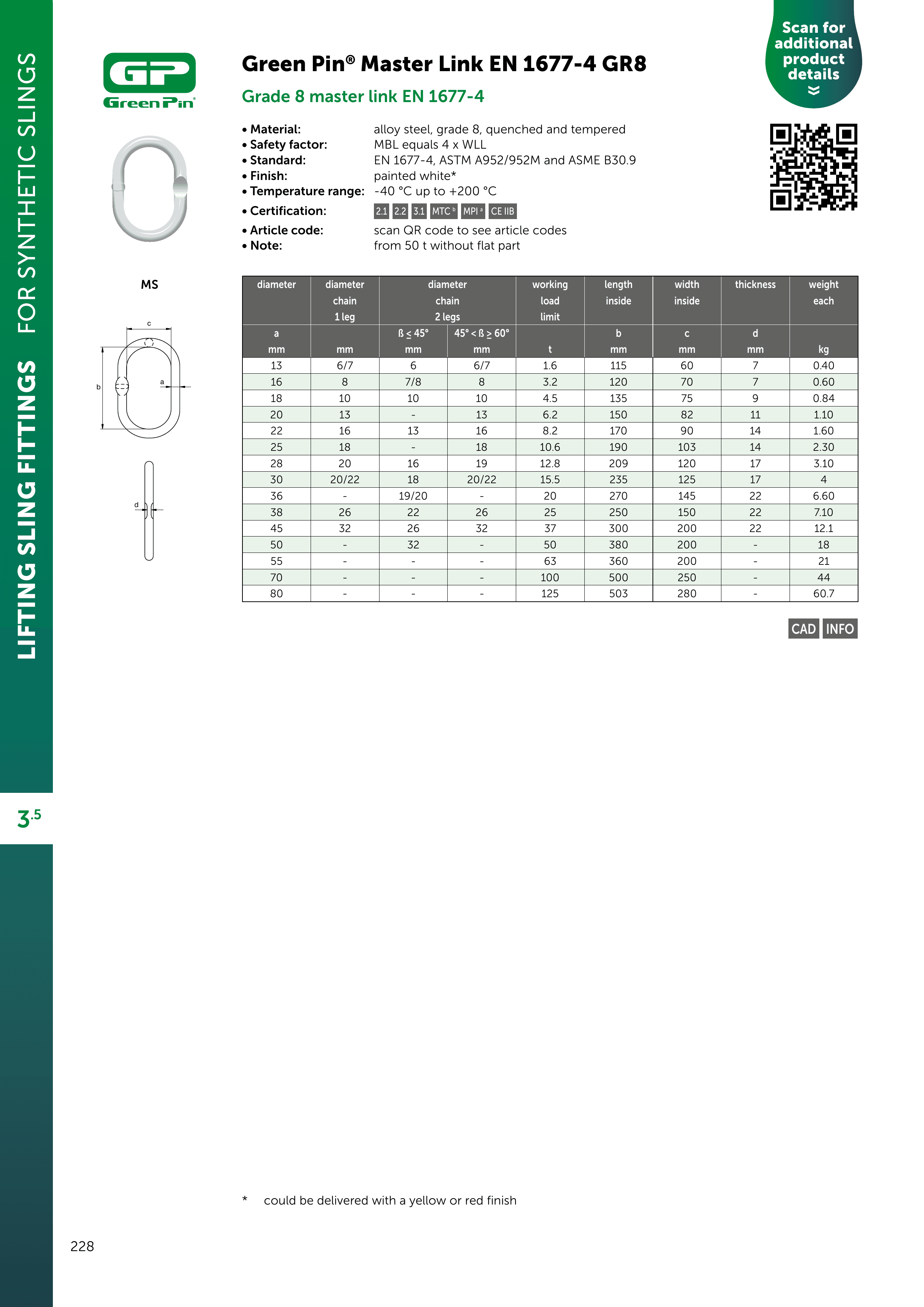

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Green Pin® welded master link to EN 1677-4, grade 8 — the connection between the crane hook and wire-rope or chain sling legs, with a large opening to accommodate larger lifting points and crane hooks. Forged in grade 8 alloy steel, quenched and tempered, with a flat part for assembly with an omega link or thimble (from 50 t without flat part). Minimum breaking load 4× WLL (use 5:1 in a wire-rope sling). Painted white, rated −40°C to +200°C. Made to EN 1677-4, ASTM A952/A952M and ASME B30.9. WLL 1.6–125 t.
Specifications
- Category
- Master Link
- Subcategory
- Masterlink EN 1677-4 GR8
- WLL / Range
- WLL 1.6 - 125 t
- Type
- Welded master link — 1 or 2 legs
- Material
- Alloy steel, grade 8, quenched & tempered
- Safety factor
- MBL = 4 × WLL (5:1 in wire-rope sling)
- Standard
- EN 1677-4 · ASTM A952/A952M · ASME B30.9
- Finish
- Painted white
- Temperature range
- −40°C to +200°C
- Certification
- 2.1 / 2.2 / 3.1 MTC · MPI · CE IIB
- Note
- From 50 t supplied without flat part
- Part Number
- GP-WR-001
- Brand
- Green Pin
- Standards / Certifications
- EN 1677-4ASTM A952/A952MASME B30.9Grade 8CE IIB
