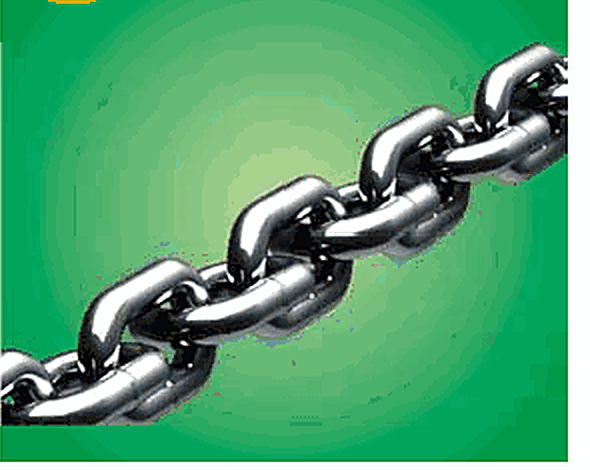

Hoisting / Sling Chain Grade 80
Catalogue detail

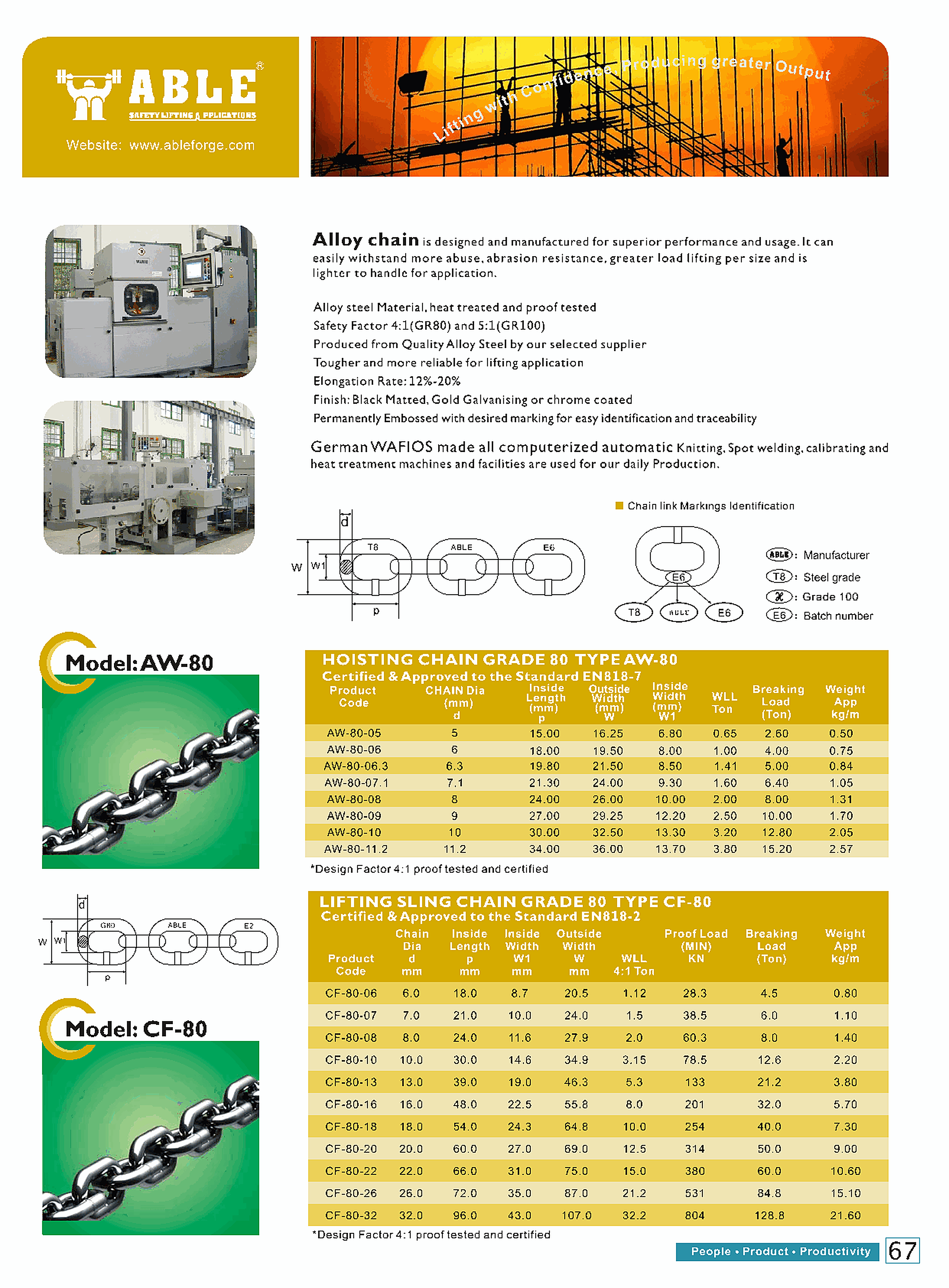

Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Add to your RFQ list. Our sales team responds within 1 business day.
Description
ABLE grade-80 alloy lifting chain, heat-treated and proof-tested, produced on German WAFIOS automatic knitting, spot-welding, calibrating and heat-treatment lines. Two types: the AW-80 Hoisting Chain to EN 818-7 (for hoists and chain blocks) in Ø 5–11.2 mm, WLL 0.65–3.8 t; and the CF-80 Lifting Sling Chain to EN 818-2 (for chain slings) in Ø 6–32 mm, WLL 1.12–32.2 t at a 4:1 design factor with proof load 28.3–804 kN. Alloy steel with 12–20% elongation and a 4:1 safety factor (5:1 for Grade 100), finished black-matt, gold-galvanized or chrome-coated, and permanently embossed with maker, steel grade (T8) and batch number for traceability.
Specifications
- Category
- Lifting Chain & Fittings
- Subcategory
- Alloy lifting chain Grade 80
- WLL / Range
- WLL 0.65 - 32.2 t
- Type
- Grade 80 alloy lifting chain — hoisting (AW-80) & sling (CF-80)
- AW-80 hoisting chain
- EN 818-7 · Ø 5–11.2 mm · WLL 0.65–3.8 t
- CF-80 sling chain
- EN 818-2 · Ø 6–32 mm · WLL 1.12–32.2 t
- Design factor
- 4:1 (GR80) · 5:1 (GR100)
- CF-80 proof load
- 28.3 – 804 kN
- CF-80 breaking load
- 4.5 – 128.8 t
- Elongation
- 12 – 20%
- Finish
- Black-matt · gold-galvanized · chrome
- Marking
- Maker · T8 grade · batch no. embossed
- Manufacture
- German WAFIOS automatic lines
- Part Number
- AW-80 / CF-80
- Brand
- ABLE
- Standards / Certifications
- EN 818-7 (AW-80)EN 818-2 (CF-80)Grade 804:1
