Independent Core Steel Wire Rope
Catalogue detail

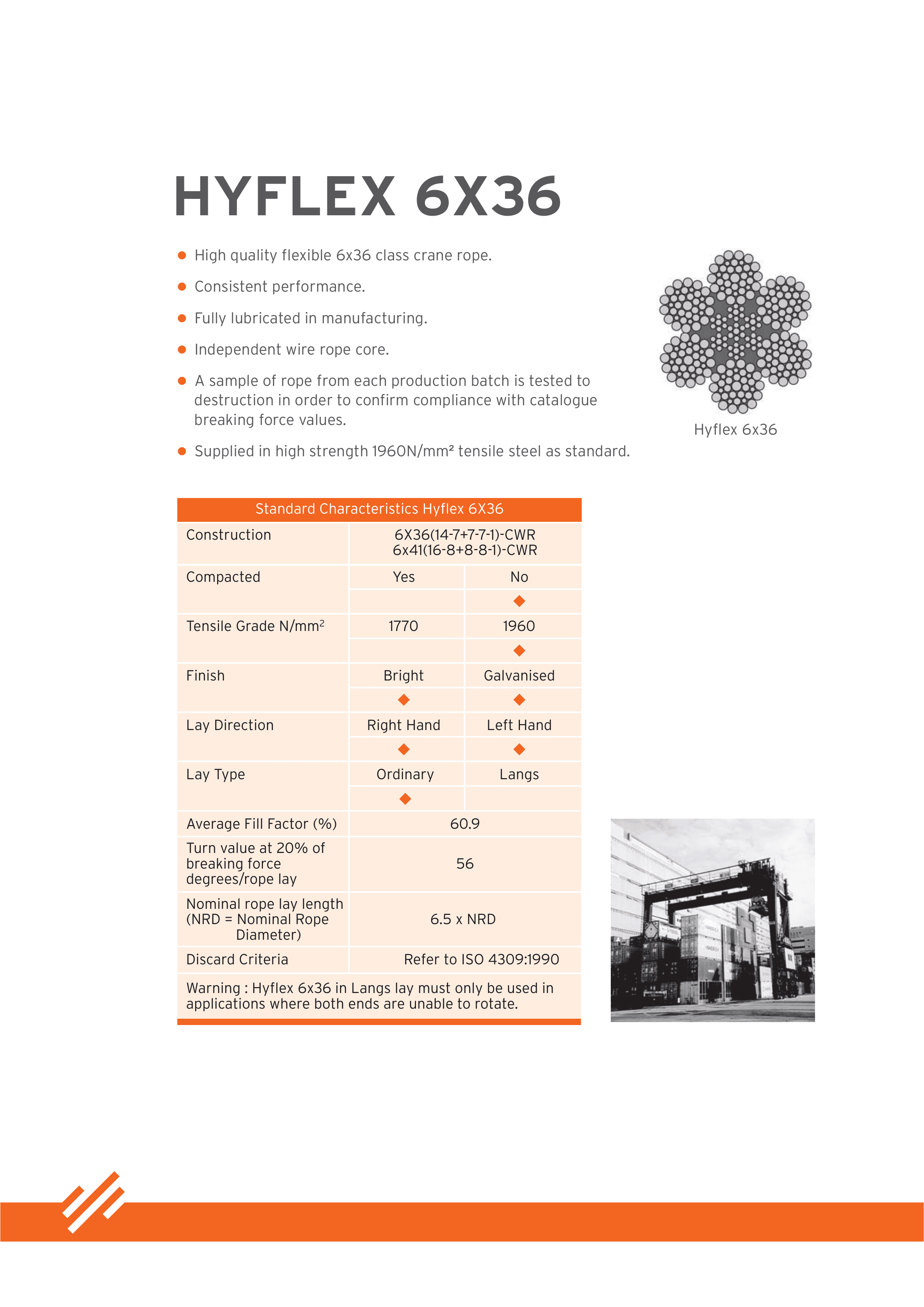

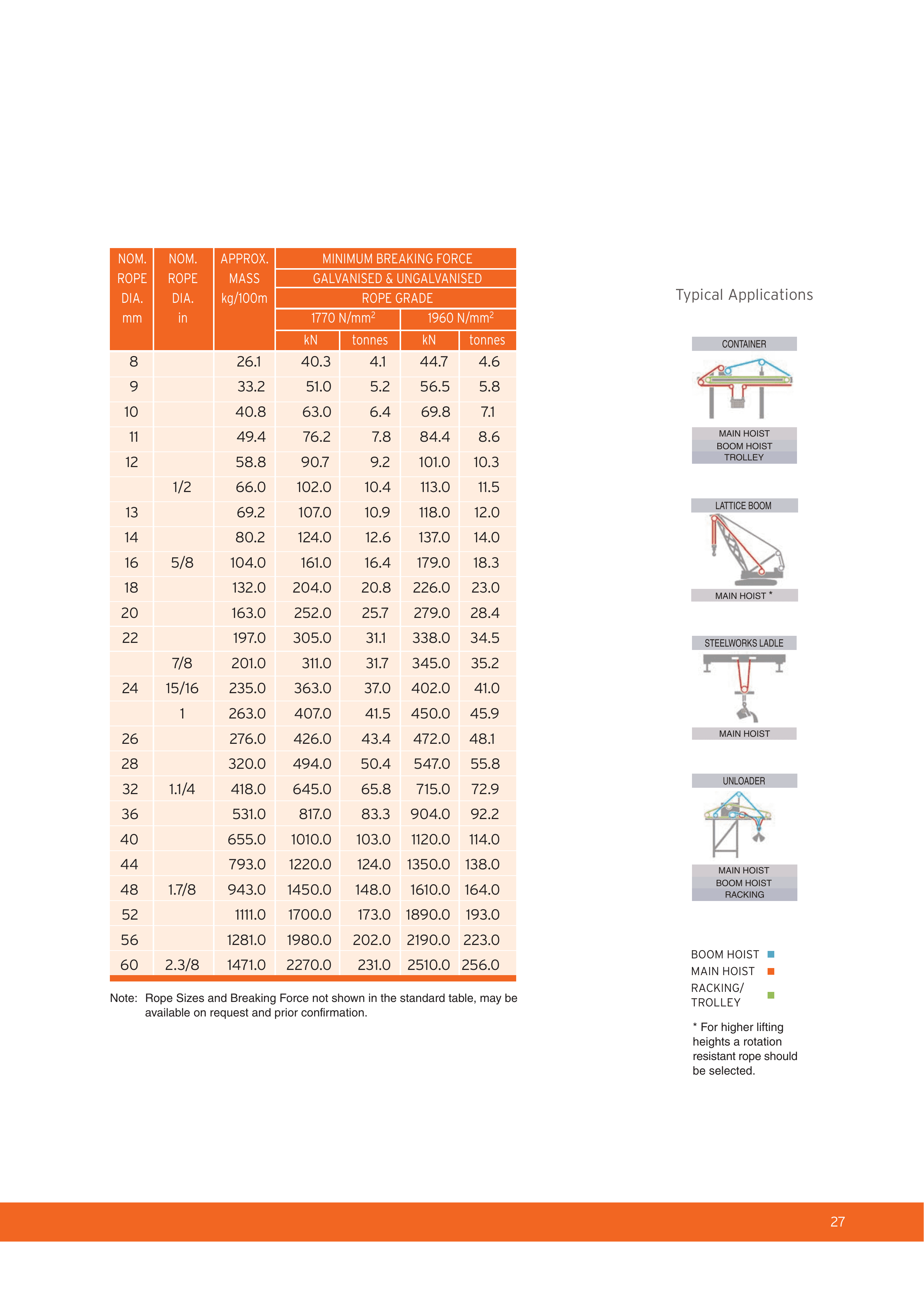

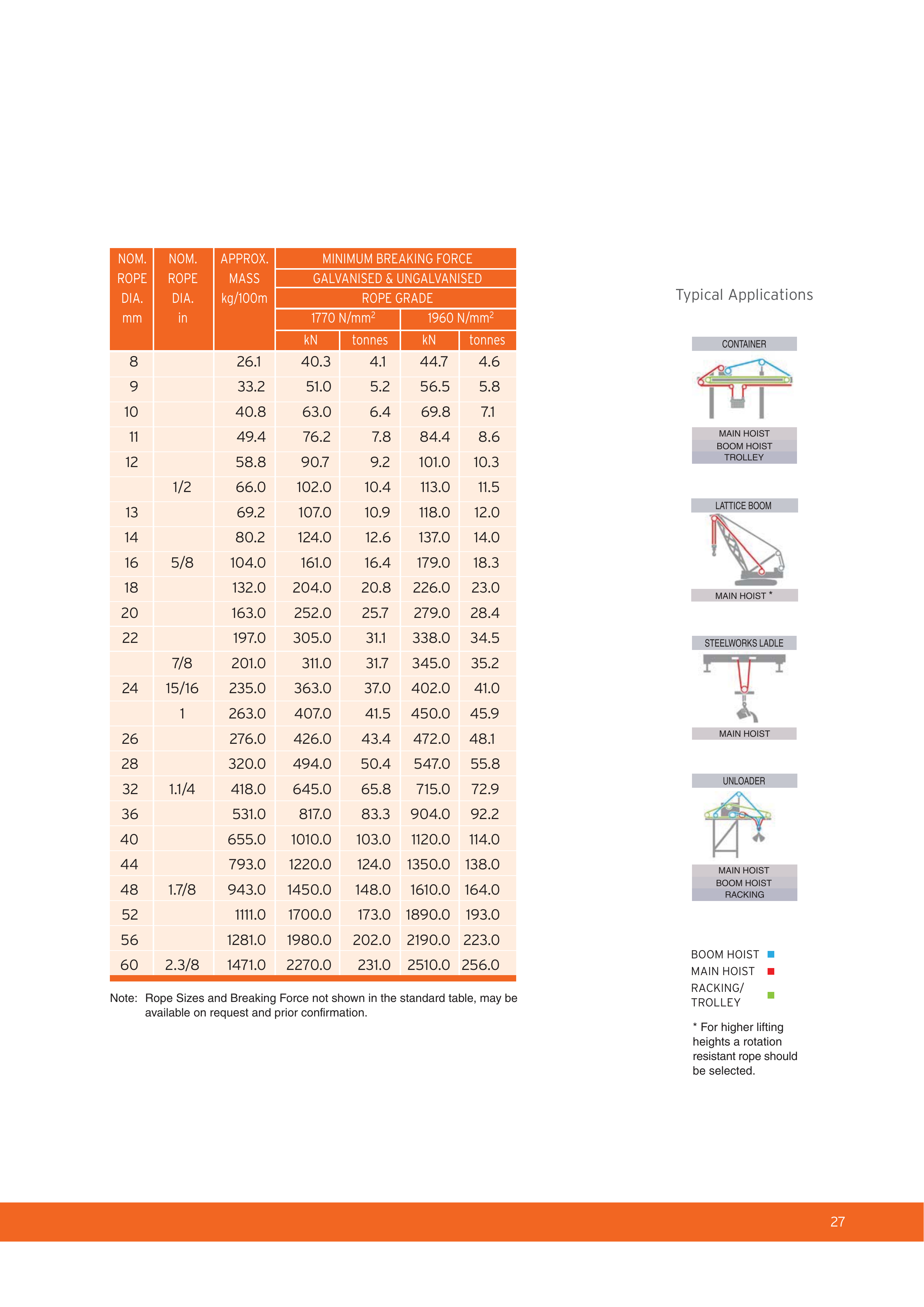

Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Add to your RFQ list. Our sales team responds within 1 business day.
Description

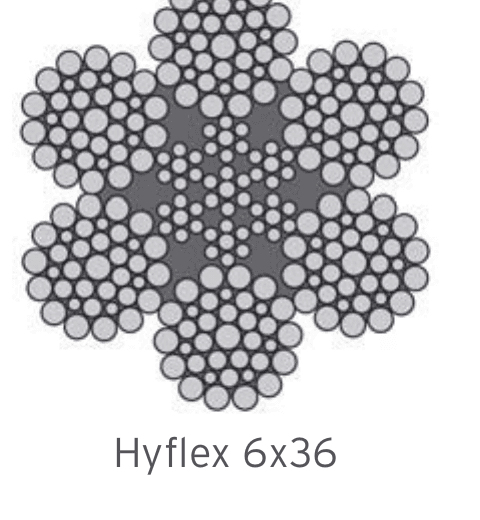

Hyflex 6×36 — a high-quality flexible 6×36 class crane rope built on an Independent Wire Rope Core (IWRC) for high strength, crush resistance and consistent performance. The multi-strand 6×36 (14-7+7-7-1) / 6×41 (16-8+8-8-1) construction gives good flexibility for hoist, boom-hoist, trolley and lattice-boom reeving. Fully lubricated in manufacture, and every production batch is sample-tested to destruction to confirm catalogue breaking forces. Supplied in 1960 N/mm² high-tensile steel as standard (1770 N/mm² also available), bright or galvanized, in ordinary or Langs lay. Diameters Ø 8–60 mm with minimum breaking force up to 2510 kN (256 t). Discard criteria to ISO 4309:1990. (Langs lay must only be used where both rope ends cannot rotate.)
Specifications
- Category
- Steel Wire Rope
- Subcategory
- Independent core (6x36 / 6x37 / 6x19 + IWRC)
- WLL / Range
- Ø 8 – 60 mm · MBF up to 256 t
- Type
- Flexible multi-strand crane rope, independent core
- Construction
- 6×36 (14-7+7-7-1) · 6×41 (16-8+8-8-1)
- Core
- Independent Wire Rope Core (IWRC)
- Compacted
- No
- Tensile grade
- 1770 or 1960 N/mm²
- Finish
- Bright or galvanized
- Lay direction
- Right hand or left hand
- Lay type
- Ordinary or Langs
- Average fill factor
- 60.9%
- Rope lay length
- 6.5 × nominal rope Ø
- Rope diameter
- Ø 8 – 60 mm
- Approx. mass
- 26.1 – 1471 kg/100 m
- Min. breaking force
- 44.7 – 2510 kN (up to 256 t) at 1960 N/mm²
- Discard criteria
- ISO 4309:1990
- Standards / Certifications
- Hyflex 6×36ISO 4309:19901770 / 1960 N/mm²
