Hoist & TrolleyChain lever hoistAvailable

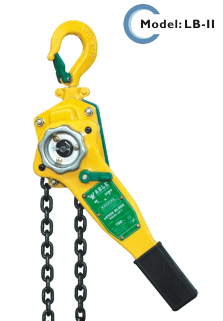

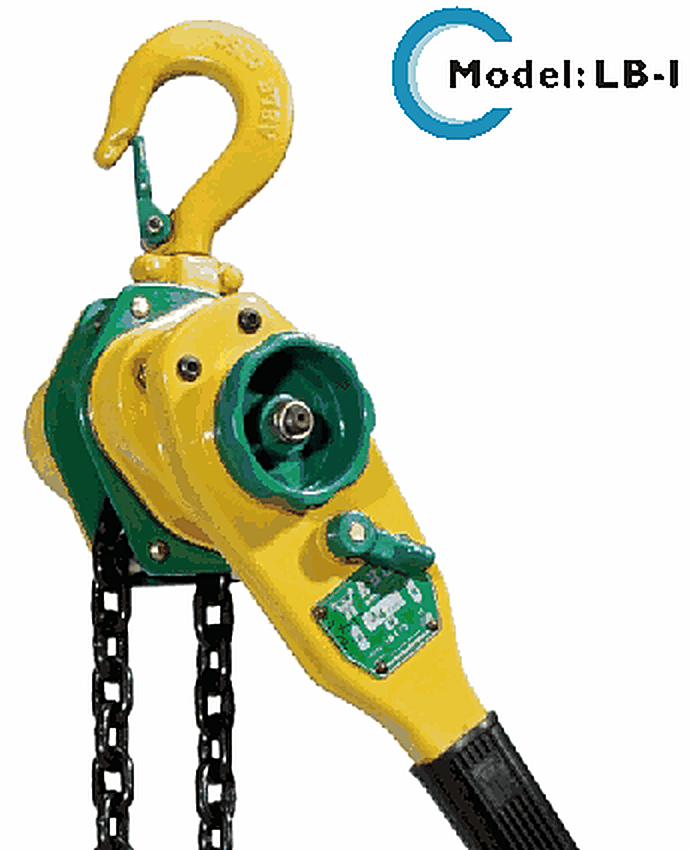

Lever Block LB-I / LB-II Series
WLL 0.5 - 9 t
Part No. LB-I / LB-II· ABLE

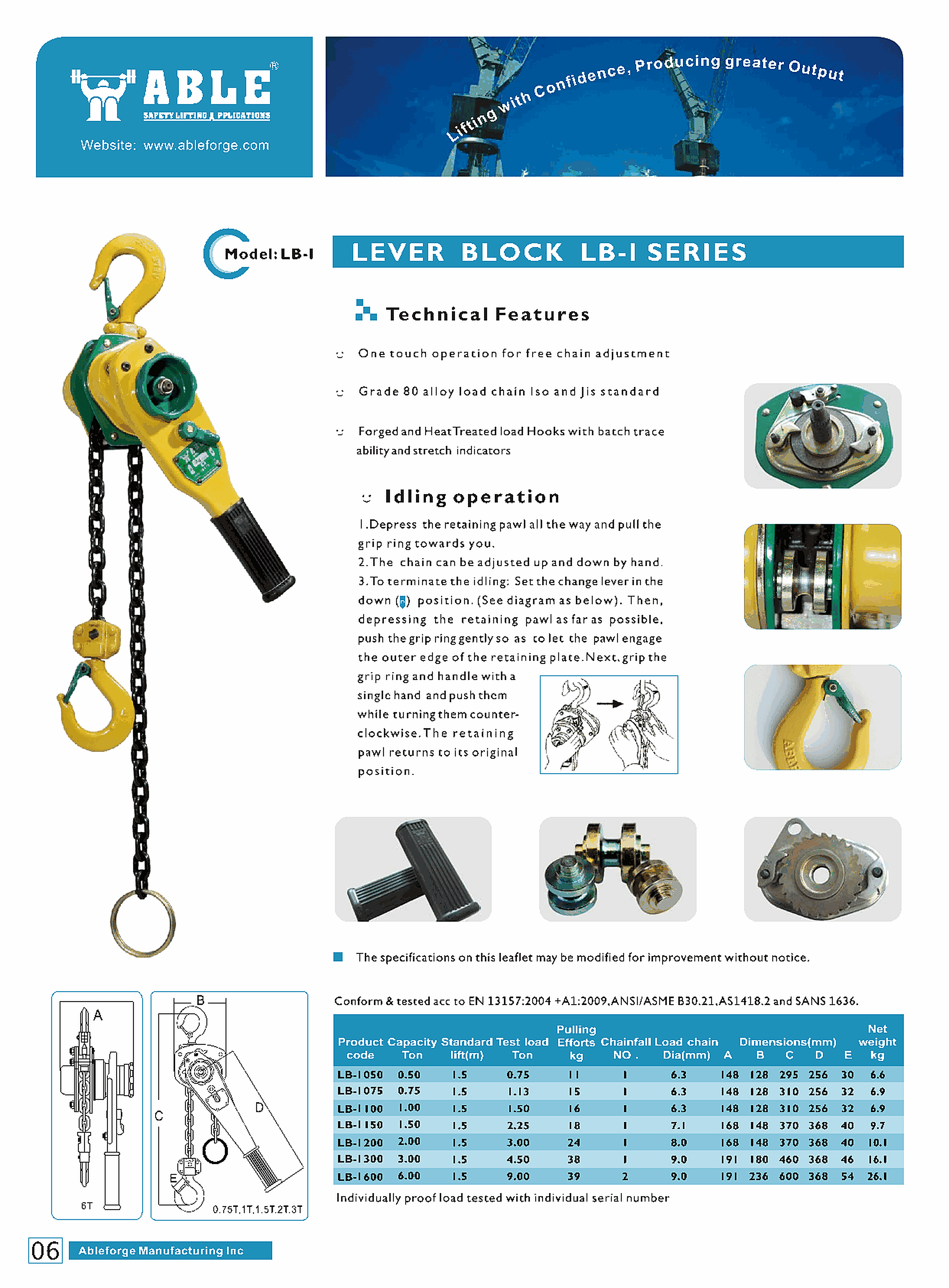

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
ABLE LB-I series lever block (ratchet lever hoist) for pulling, tensioning and lifting. One-touch free-chaining lets the load chain be pulled through quickly by hand; the Grade 80 alloy load chain meets ISO and JIS standards, and the forged, heat-treated load hooks carry batch traceability and stretch indicators. Individually proof-load tested with a serial number. Conforms to EN 13157:2004+A1:2009, ANSI/ASME B30.21, AS 1418.2 and SANS 1636. WLL 0.5–9 t, standard lift 1.5 m.
Specifications
- Category
- Hoist & Trolley
- Subcategory
- Chain lever hoist
- WLL / Range
- WLL 0.5 - 9 t
- Type
- Lever block / ratchet lever hoist
- Load chain
- Grade 80 alloy (ISO & JIS)
- Free-chaining
- One-touch idling for fast chain adjustment
- Hooks
- Forged, heat-treated, with stretch indicators
- Standard lift
- 1.5 m
- Testing
- Individually proof-load tested, serial number
- Standard
- EN 13157 · ANSI/ASME B30.21 · AS 1418.2 · SANS 1636
- WLL range
- 0.5 – 9 t
- Part Number
- LB-I / LB-II
- Brand
- ABLE
- Standards / Certifications
- EN 13157ASME B30.21AS 1418.2Grade 80 chain
