Multipurpose Full-Body Harness
Catalogue detail

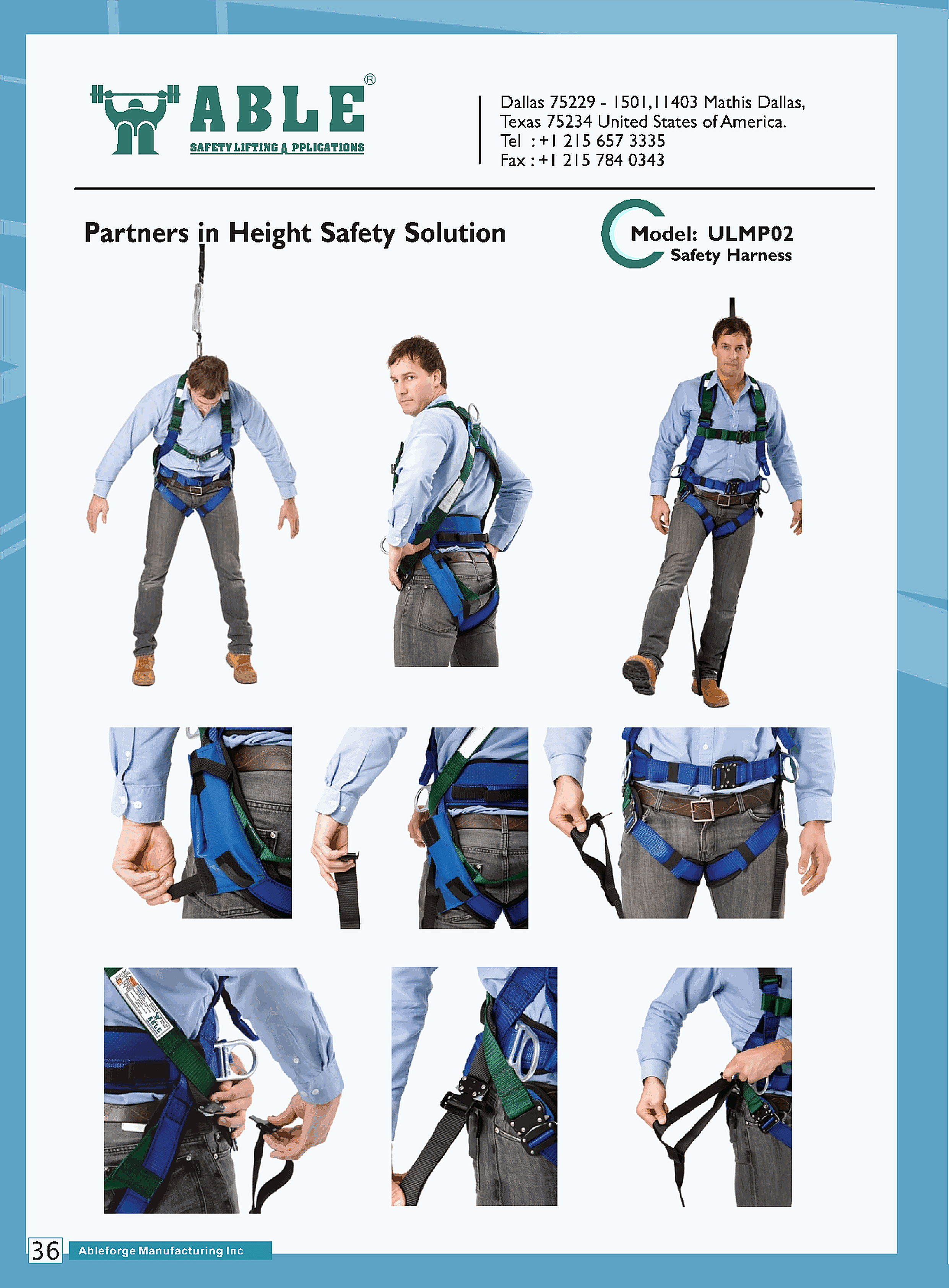

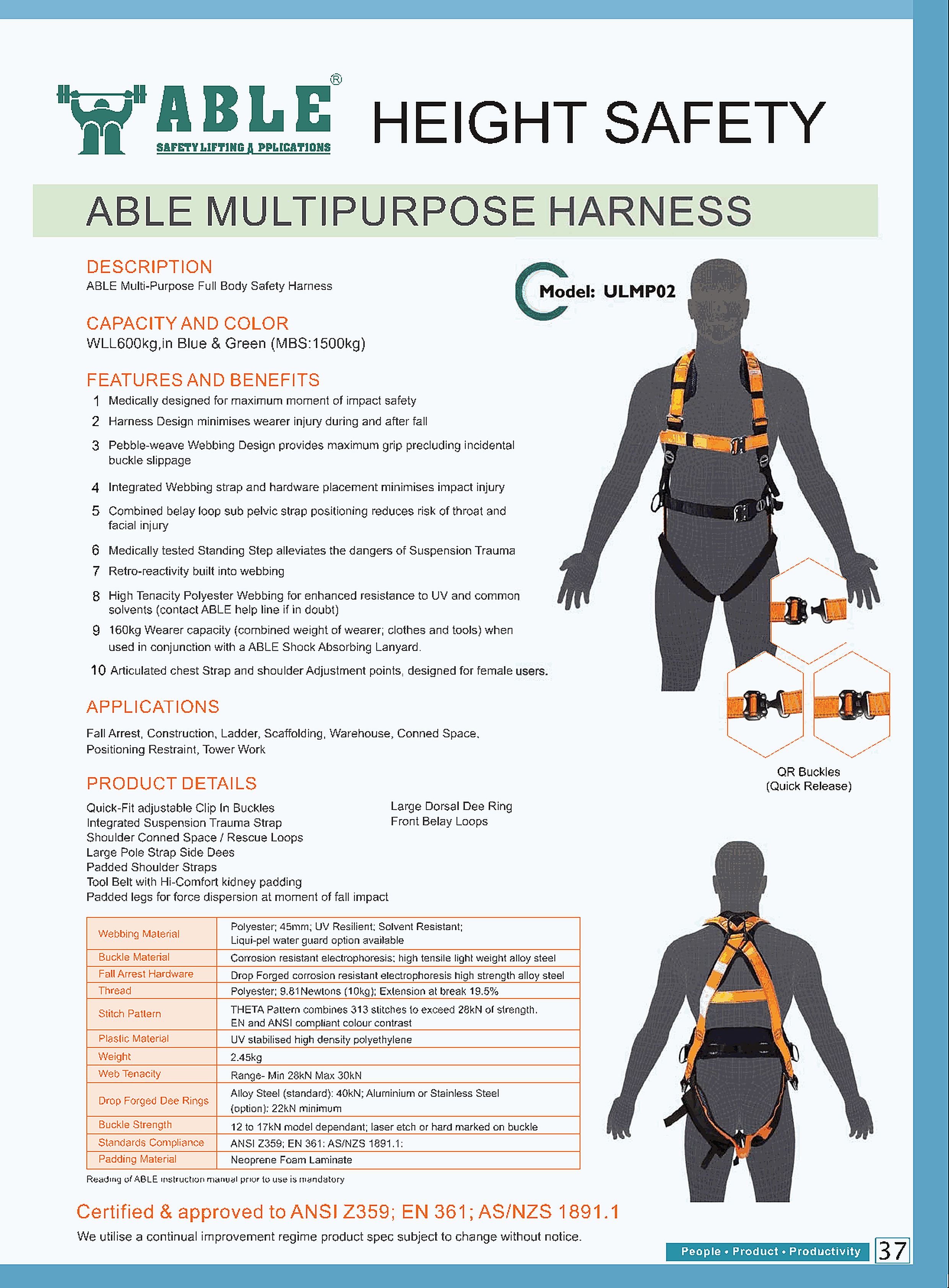

Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Add to your RFQ list. Our sales team responds within 1 business day.
Description

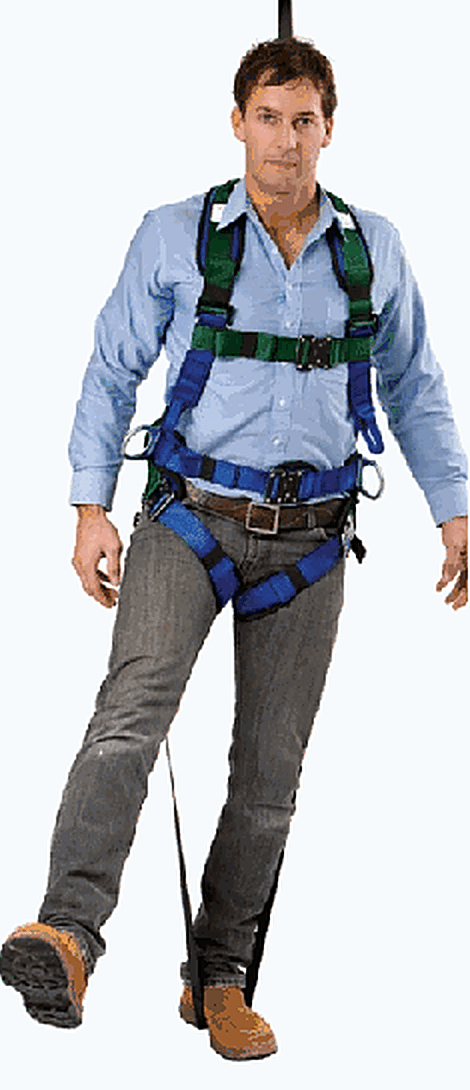

ABLE Model ULMP02 multipurpose full-body safety harness for fall arrest and work positioning. Medically designed to minimise wearer injury during and after a fall, with a medically-tested standing step that relieves suspension trauma, padded shoulder and leg straps, a large dorsal dee-ring, front belay loops, side pole-strap dees and a padded tool belt. High-tenacity 45 mm polyester pebble-weave webbing resists UV and common solvents; THETA-pattern stitching exceeds 28 kN; drop-forged, corrosion-resistant alloy-steel hardware with quick-release buckles. Harness WLL 600 kg (MBS 1500 kg); rated wearer capacity 160 kg (wearer + clothing + tools) when used with an ABLE shock-absorbing lanyard. Weight 2.45 kg. Certified and approved to ANSI Z359, EN 361 and AS/NZS 1891.1.
Specifications
- Category
- Safety Equipment
- Subcategory
- Safety harness
- WLL / Range
- Max user 160 kg · EN 361
- Model
- ULMP02 — multipurpose full-body harness
- Attachment points
- Dorsal dee-ring · front belay loops · side pole-strap dees
- Webbing
- 45 mm high-tenacity polyester — UV & solvent resistant
- Stitching
- THETA pattern, > 28 kN
- Hardware
- Drop-forged alloy steel · quick-release buckles
- Dee-ring strength
- 40 kN (alloy) · 22 kN (alu / SS option)
- Harness WLL
- 600 kg (MBS 1500 kg)
- Rated user capacity
- 160 kg (with shock-absorbing lanyard)
- Weight
- 2.45 kg
- Applications
- Fall arrest · construction · scaffolding · tower / confined space
- Standard
- ANSI Z359 · EN 361 · AS/NZS 1891.1
- Part Number
- ULMP02
- Brand
- ABLE
- Standards / Certifications
- EN 361ANSI Z359AS/NZS 1891.1
