Description

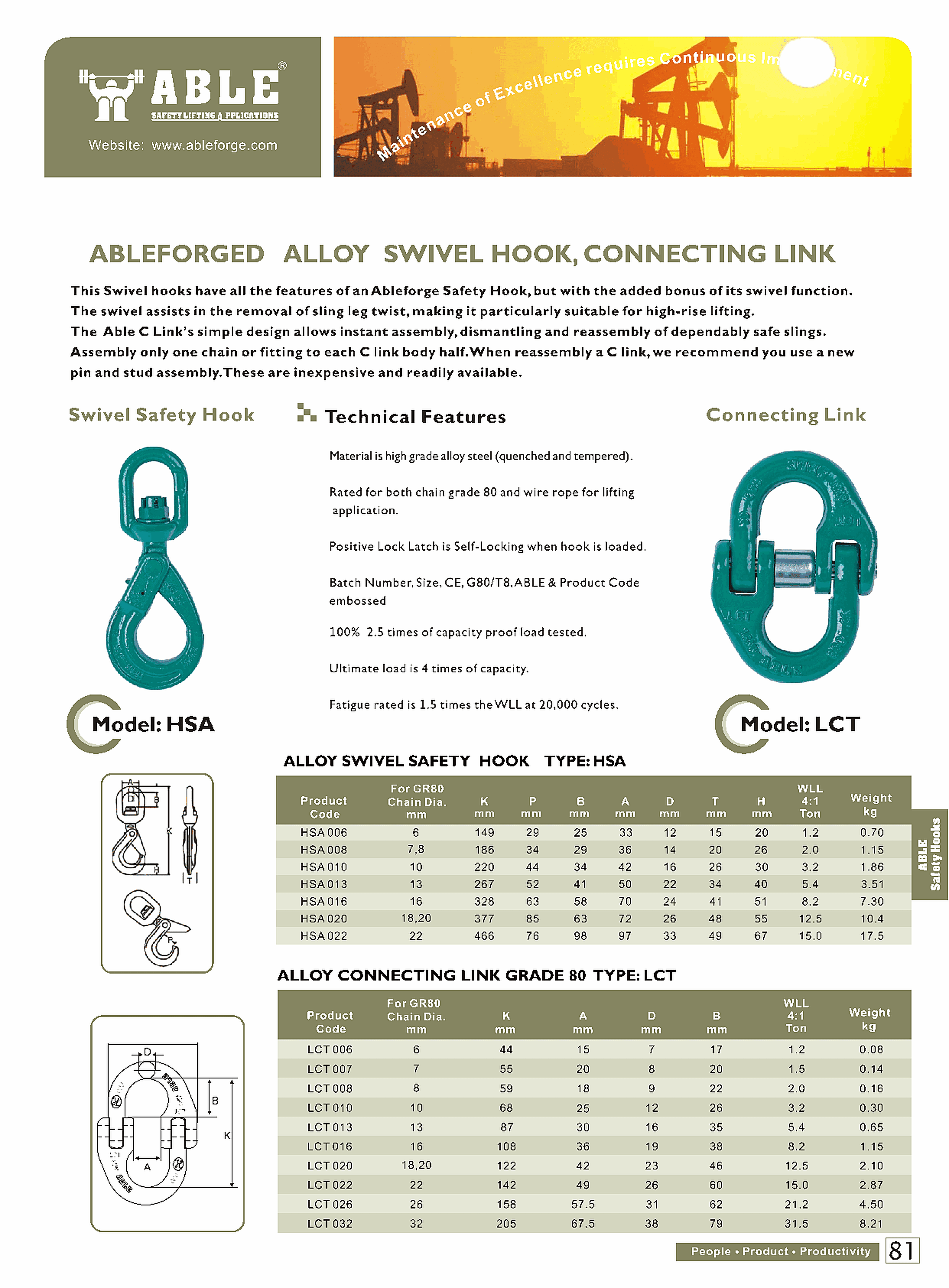

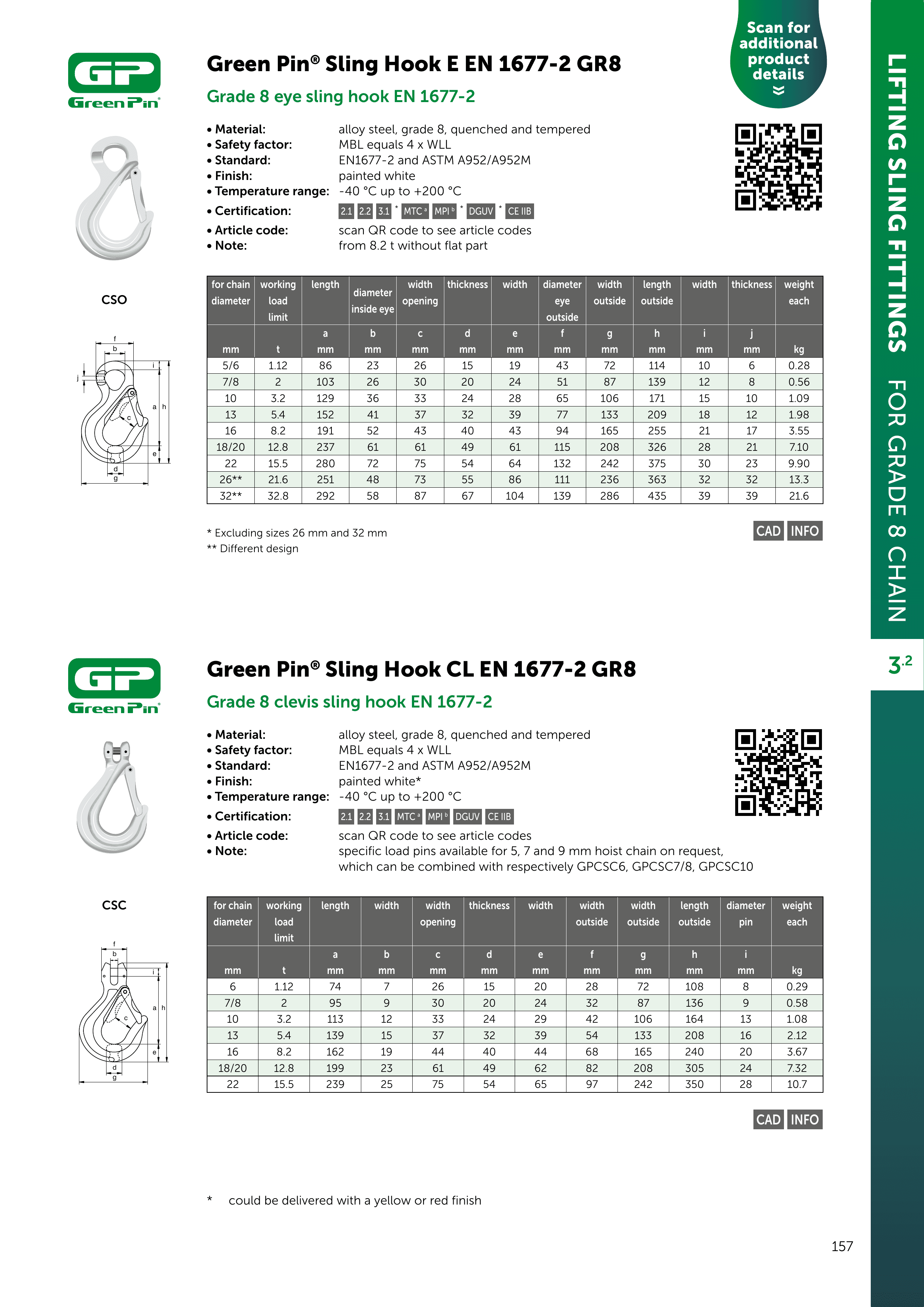

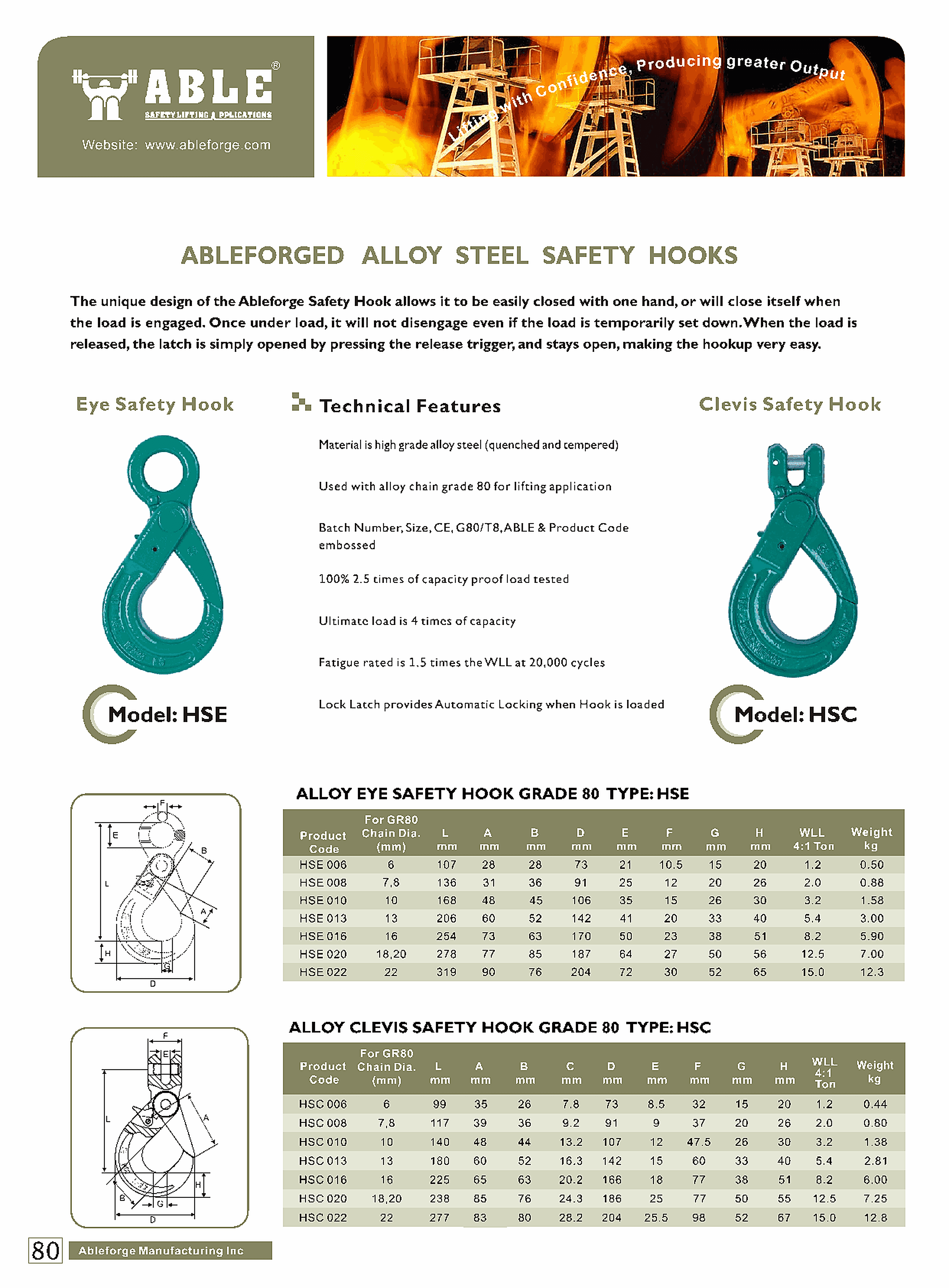

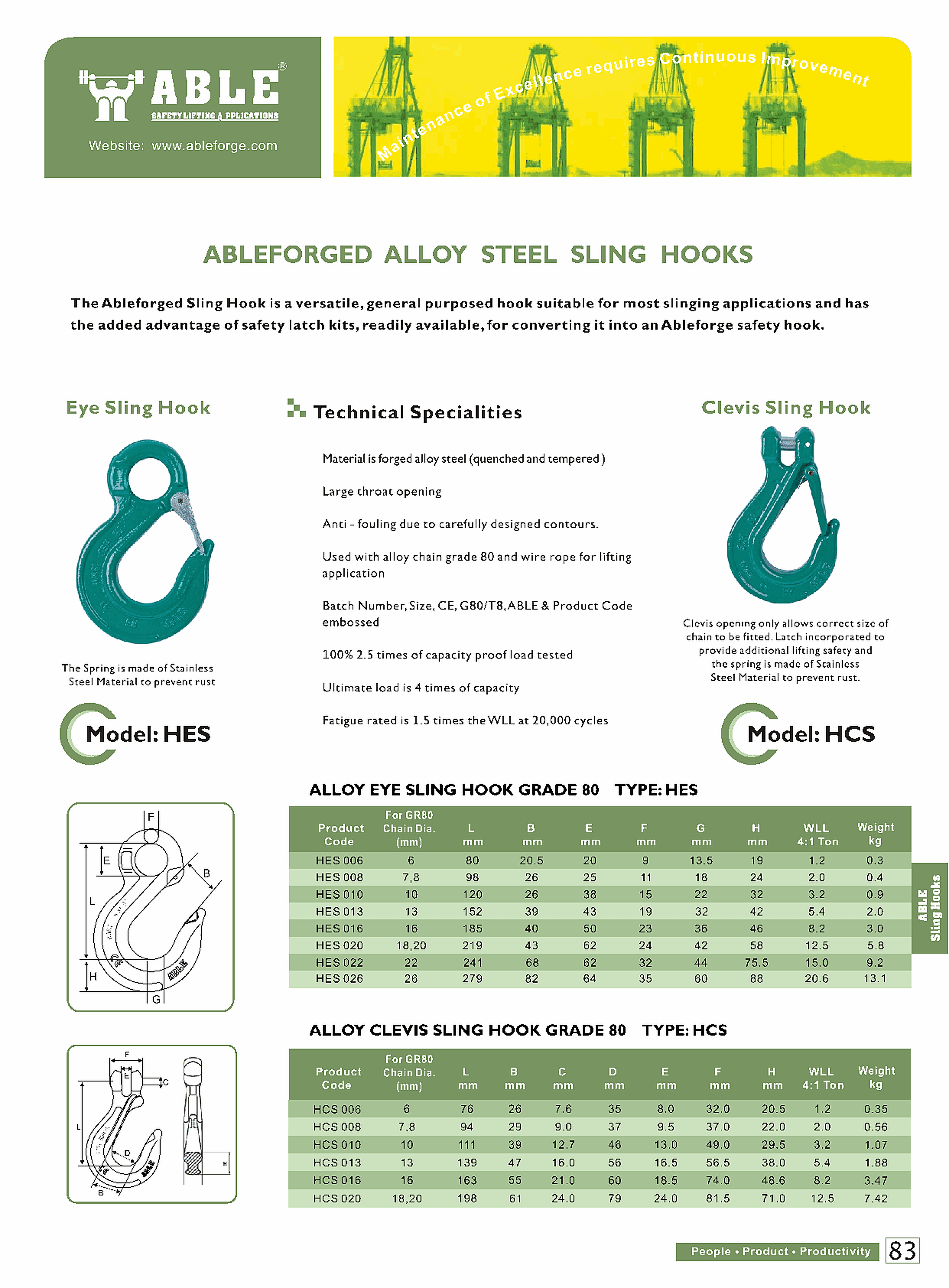

Forged alloy-steel lifting hooks in eye and clevis forms, spanning the ABLE and Green Pin ranges. ABLE self-locking safety hooks (Model HSE eye / HSC clevis) close automatically under load and cannot disengage until the release trigger is pressed; the HSA adds a swivel to take out sling-leg twist. ABLE sling hooks (HES eye / HCS clevis) give a large throat with a stainless safety-latch spring, and grab hooks (HGC/HGE) shorten and choke chain. Green Pin® Sling Hook E / CL to EN 1677-2 grade 8 (WLL 1.12–32.8 t) and grade-10 grab hooks complete the range. Grade 80/100 alloy steel, quenched and tempered; ultimate load 4× WLL, proof-tested to 2.5× WLL and fatigue-rated to 1.5× WLL at 20,000 cycles, individually batch-marked with size, CE and G80/T8.
Specifications
- Category
- Fittings
- Subcategory
- Hook
- WLL / Range
- WLL 1.12 - 32.8 t
- Types
- Self-locking (HSE/HSC) · swivel (HSA) · sling (HES/HCS) · grab (HGC/HGE) · GP sling & grab
- Material
- Alloy steel, grade 80 / 100, quenched & tempered
- Safety factor
- MBL = 4 × WLL
- Proof load
- 2.5 × WLL
- Fatigue rating
- 1.5 × WLL at 20,000 cycles
- Self-locking
- Automatic lock under load (HSE / HSC / HSA)
- Standard
- EN 1677-2 · ASTM A952/A952M · G80/T8
- WLL range
- 1.12 – 32.8 t (GP eye sling hook)
- Finish
- Painted (green / white / blue) · SS latch spring
- Certification
- Batch no., size, CE, G80/T8 embossed
- Part Number
- ABLE HSE-HSA / GP Sling Hook
- Brand
- Green Pin / ABLE
- Standards / Certifications
- EN 1677-2ASTM A952/A952MGrade 80 / 100CE IIB
