Vertical / Auto / Chain Drum Lifter
Catalogue detail

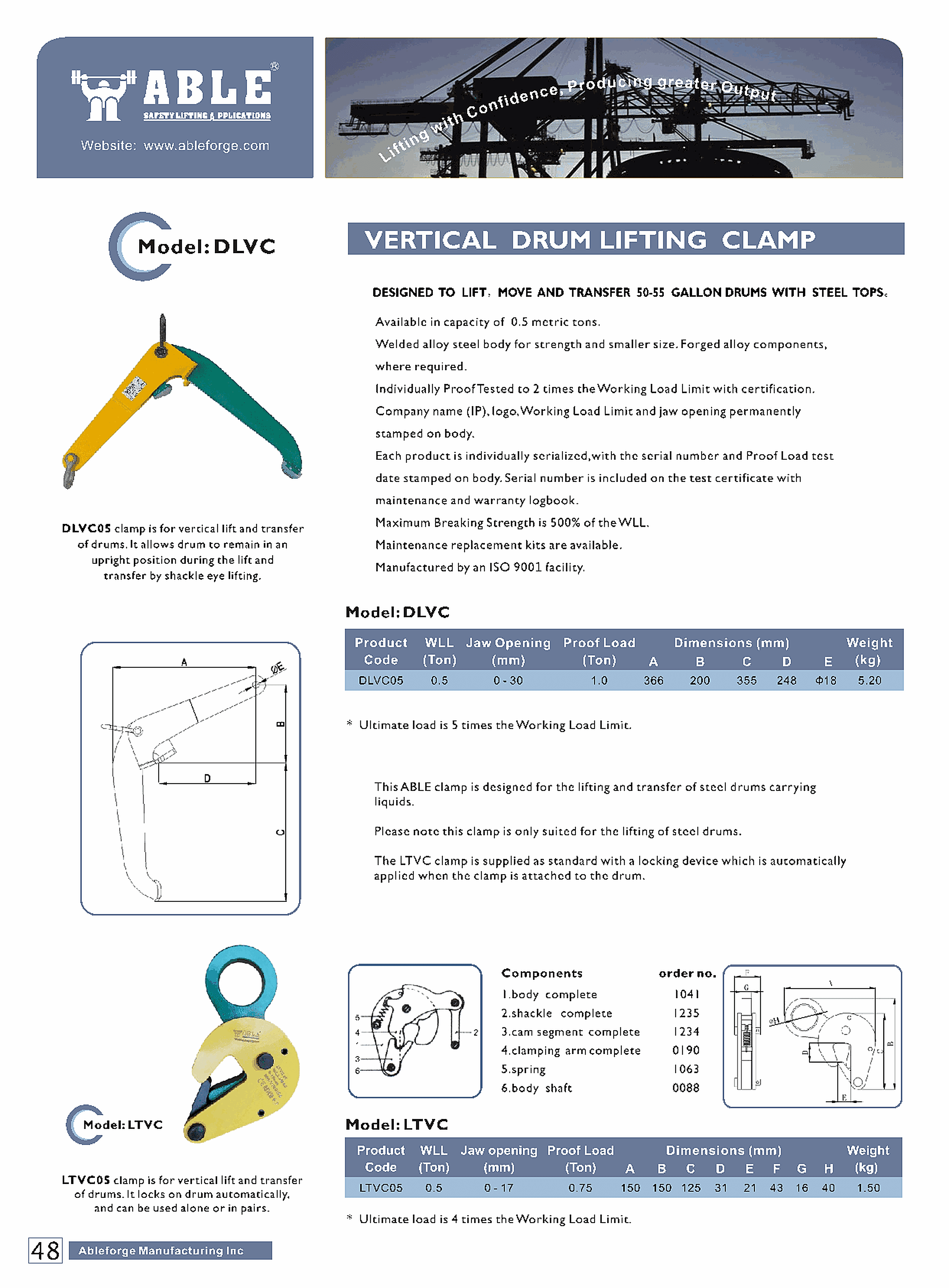

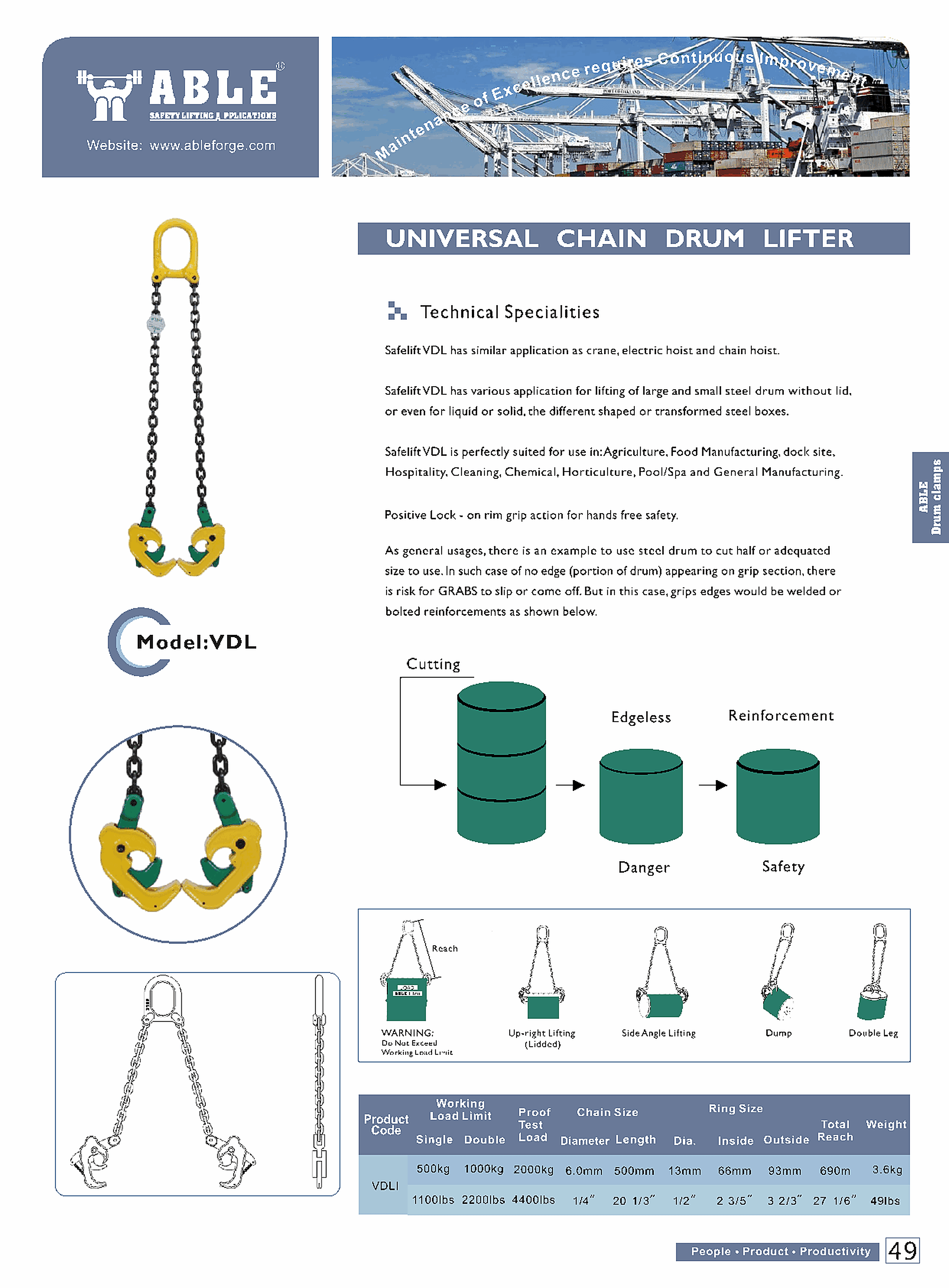

Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Add to your RFQ list. Our sales team responds within 1 business day.
Description

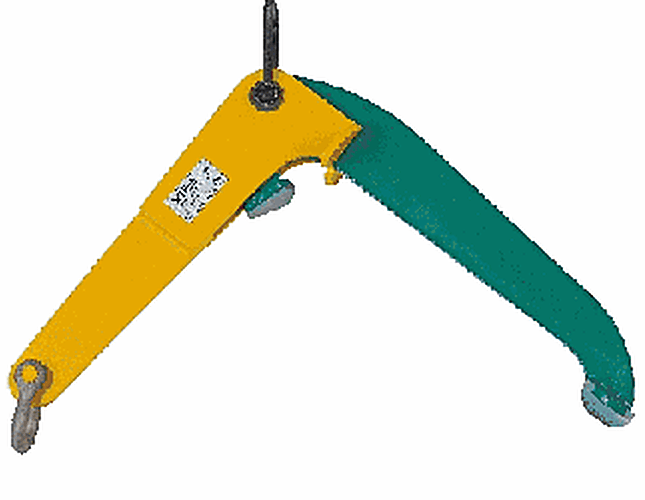

ABLE drum lifting clamps for lifting, moving and transferring 50–55 gallon steel drums with steel tops. The range covers the DLVC vertical drum lifting clamp (WLL 0.5 t, jaw 0–30 mm, proof 1.0 t) for upright shackle-eye lifting; the LTVC automatic-locking clamp (WLL 0.5 t, jaw 0–17 mm, proof 0.75 t) that locks onto the drum automatically and can be used alone or in pairs; and the VDL universal chain drum lifter (500 kg single / 1000 kg double, 6 mm Grade-80 chain, 2000 kg proof) with positive rim-grip action for hands-free safety. Welded alloy-steel bodies with forged components, individually proof-tested to twice the WLL with certification and a stamped serial number; maximum breaking strength 500% of the WLL. Manufactured by an ISO 9001 facility.
Specifications
- Category
- Lifting Chain & Fittings
- Subcategory
- Drum Lifter
- WLL / Range
- WLL 0.5 t
- Type
- Drum lifting clamps — vertical (DLVC), auto-lock (LTVC), chain (VDL)
- DLVC
- WLL 0.5 t · jaw 0–30 mm · proof 1.0 t · 5.20 kg
- LTVC (auto-lock)
- WLL 0.5 t · jaw 0–17 mm · proof 0.75 t · 1.50 kg
- VDL (chain)
- WLL 0.5 t single / 1.0 t double · 6 mm G80 chain · proof 2.0 t
- Breaking strength
- 500% of WLL (DLVC) · 400% (LTVC)
- Application
- 50–55 gallon steel drums with steel tops
- Body
- Welded alloy steel with forged components
- Testing
- Individually proof-tested, serialized · ISO 9001
- Part Number
- DLVC / LTVC / VDL
- Brand
- ABLE
- Standards / Certifications
- ISO 9001MBL 5× WLLSerial-traceable
