Vertical Lifting Clamp
WLL 1 - 5 t
Part No. VLC· ABLE

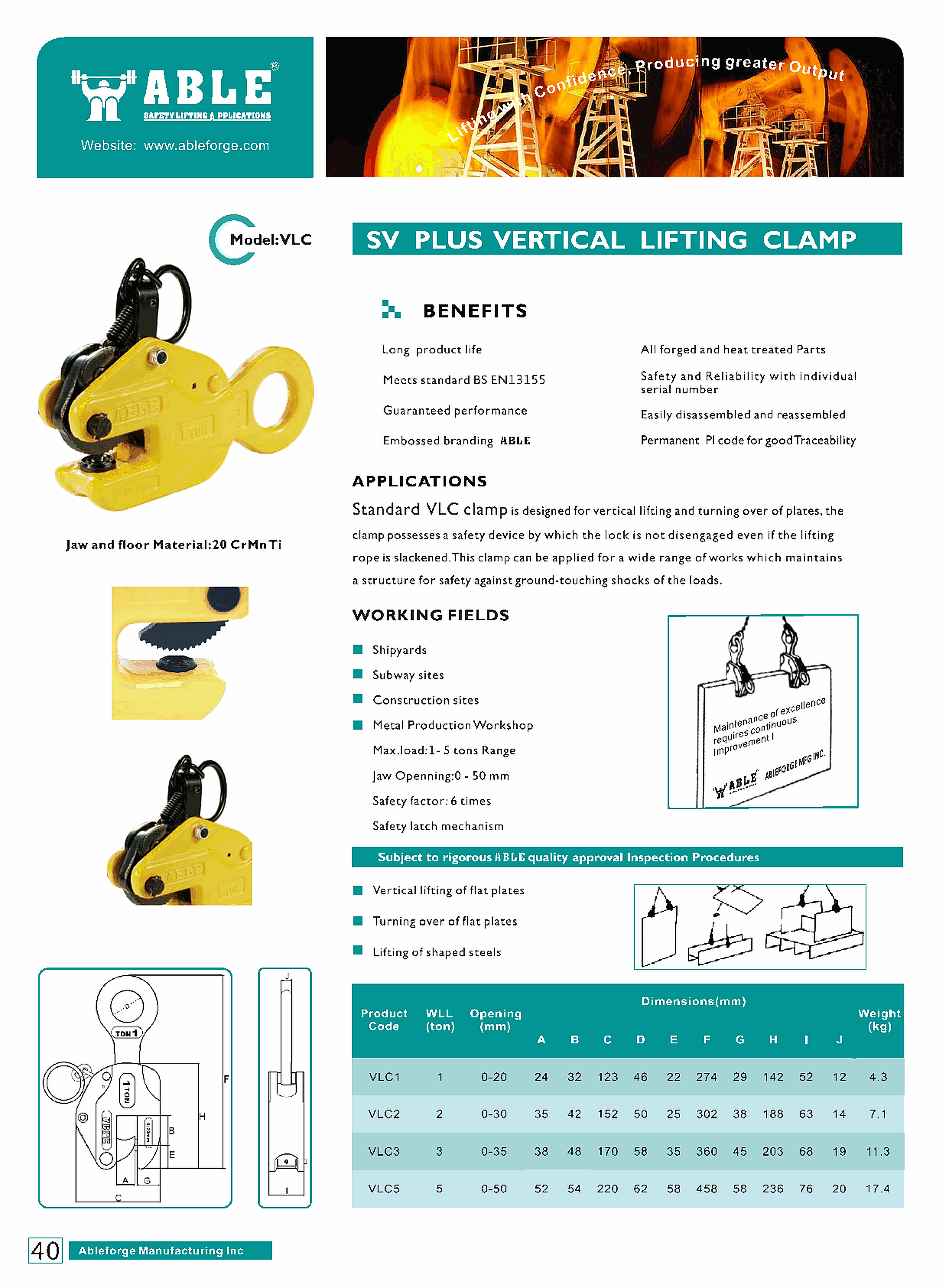

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description

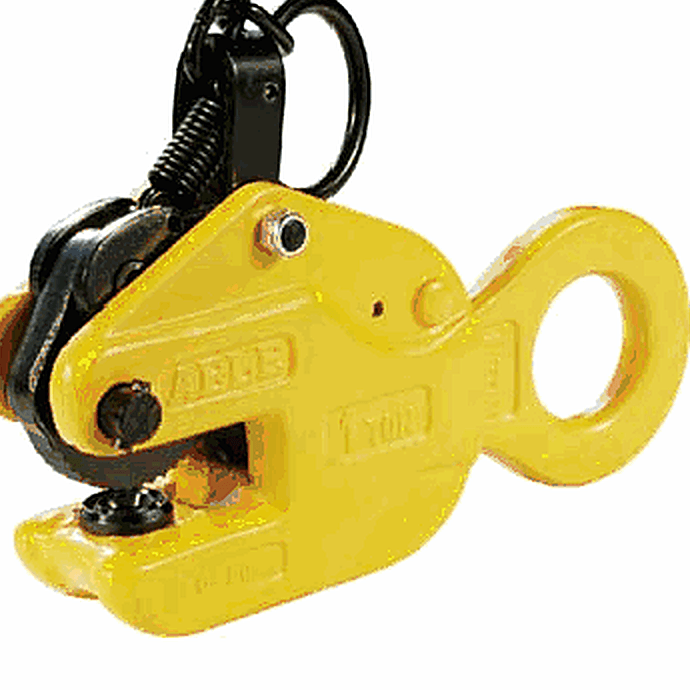

ABLE SV Plus vertical lifting clamp (VLC) for vertical lifting and 180° turning of steel plates. A safety latch keeps the cam locked even if the lifting rope goes slack, protecting against ground-touching shocks. All parts forged and heat-treated (jaw and cam in 20CrMnTi), with a 6× safety factor and an individual serial number for traceability. Meets BS EN 13155. WLL 1–5 t, jaw opening 0–50 mm.
Specifications
- Category
- Clamps
- Subcategory
- Vertical Plate Clamp
- WLL / Range
- WLL 1 - 5 t
- Type
- Vertical plate lifting clamp
- Standard
- BS EN 13155
- Jaw / cam material
- 20CrMnTi — forged & heat-treated
- Safety factor
- 6 × WLL
- Jaw opening
- 0 – 50 mm
- Locking
- Safety latch — stays locked if rope slackens
- WLL range
- 1 – 5 t
- Part Number
- VLC
- Brand
- ABLE
- Standards / Certifications
- BS EN 13155Safety factor 6:1Serial-traceable
