Wire Rope Clip
Ø4 - 65 mm
Part No. G-6240 / WRC· Green Pin / ABLE

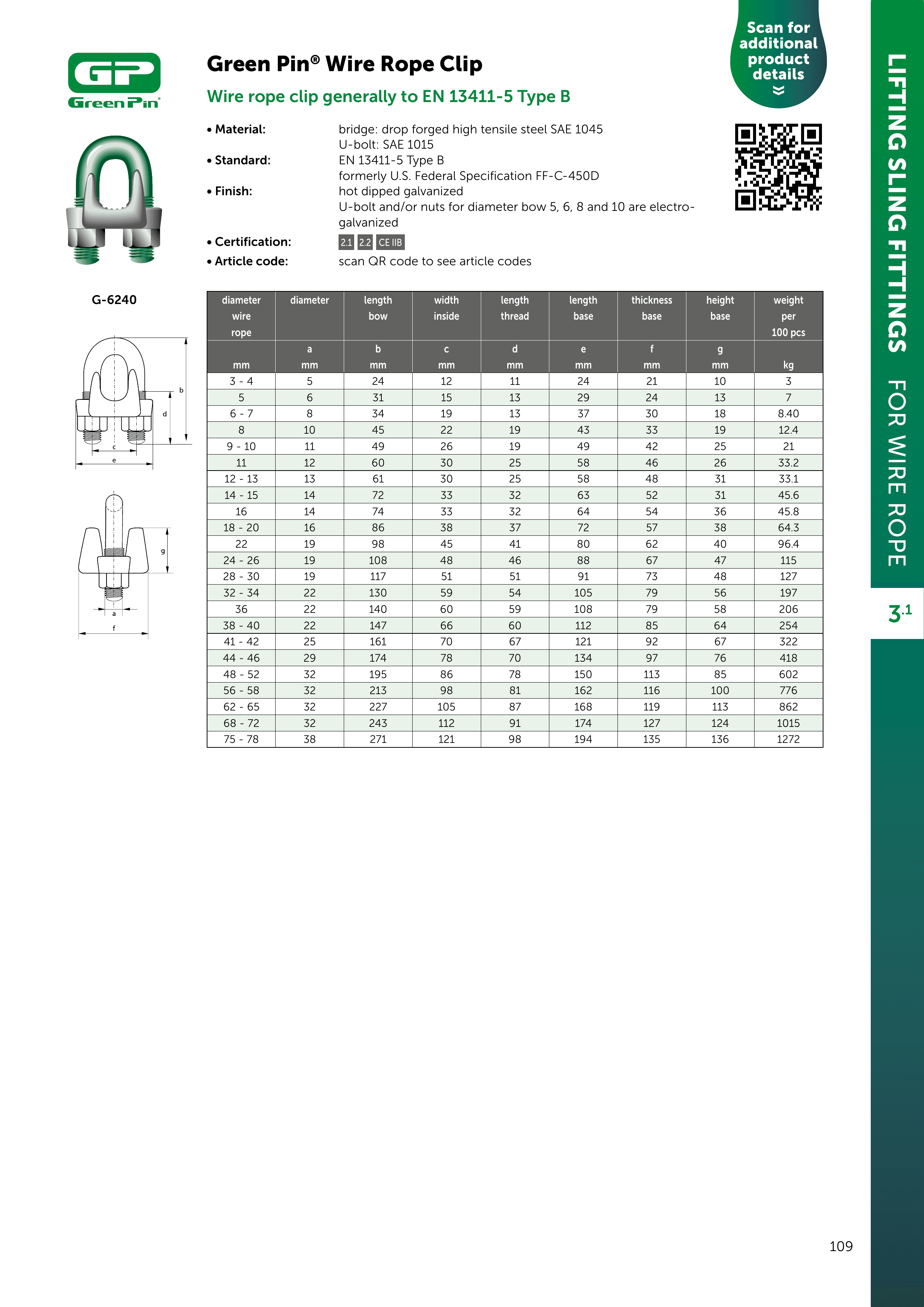

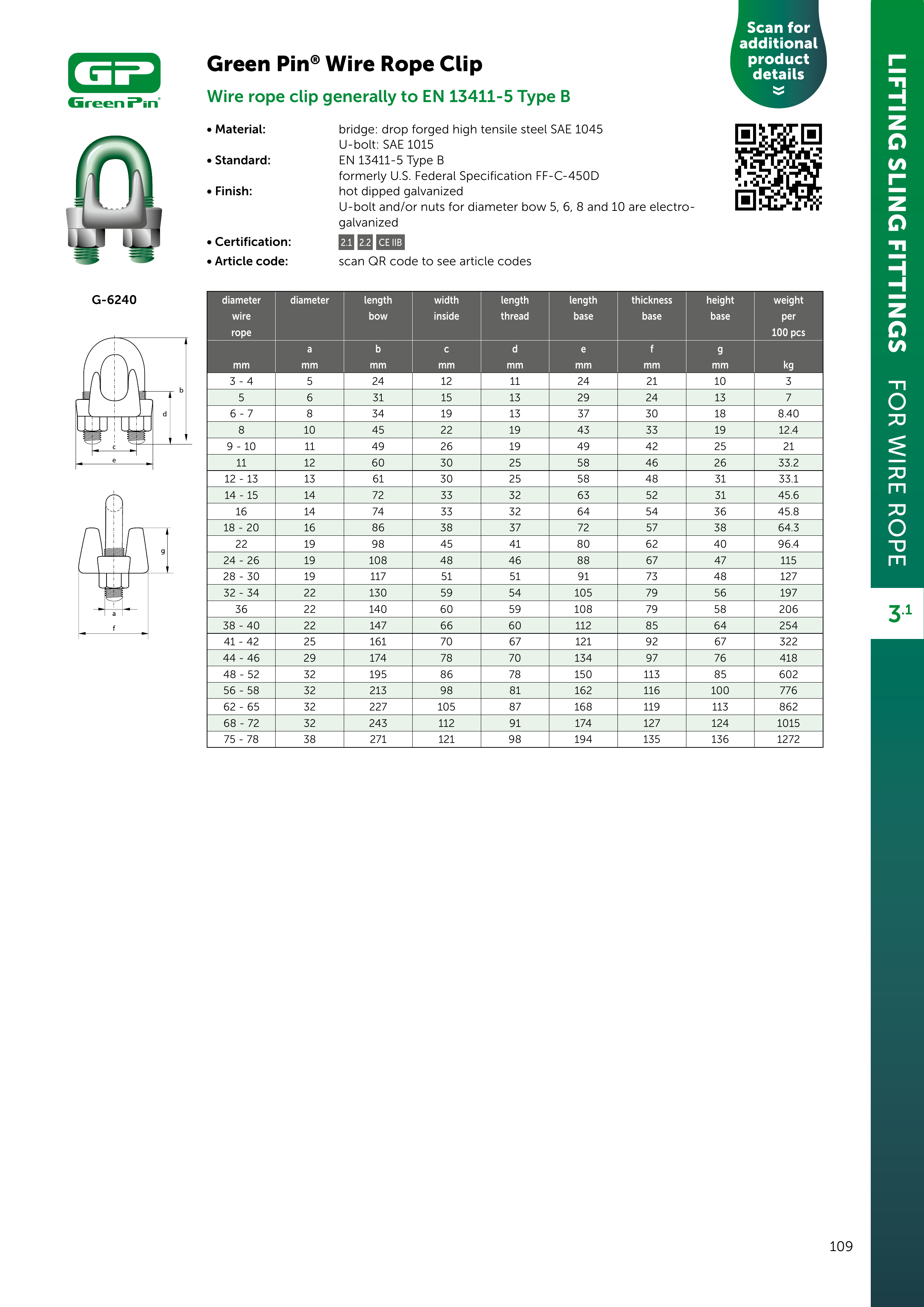

Catalogue detail
Dimensions and technical data from the manufacturer catalogue. Click an image to open full size.
Request a Quote
Add to your RFQ list. Our sales team responds within 1 business day.
Description
Green Pin® wire rope clip (bulldog grip) to EN 13411-5 Type B (formerly US Federal Spec. FF-C-450D) for forming eyes and terminations in steel wire rope. Drop-forged high-tensile steel bridge (SAE 1045) with a SAE 1015 U-bolt, hot-dipped galvanized (U-bolt and nuts electro-galvanized for bow Ø 5, 6, 8 and 10). For wire-rope diameters Ø 3–78 mm.
Specifications
- Category
- Fittings
- Subcategory
- Wire rope clip
- WLL / Range
- Ø4 - 65 mm
- Type
- Wire rope clip / bulldog grip
- Material
- Bridge — drop-forged SAE 1045 · U-bolt SAE 1015
- Standard
- EN 13411-5 Type B (formerly FF-C-450D)
- Finish
- Hot-dipped galvanized
- Rope diameter
- Ø 3 – 78 mm
- Certification
- 2.1 / 2.2 · CE IIB
- Part Number
- G-6240 / WRC
- Brand
- Green Pin / ABLE
- Standards / Certifications
- EN 13411-5 Type BHot-dip galvanizedCE IIB
